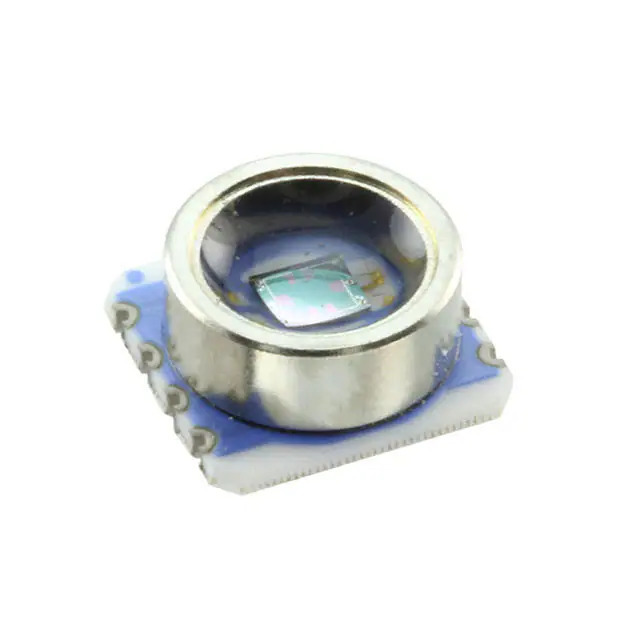

325401000-00

Part No 325401000-00
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR 14.5PSIA .15V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr TE Connectivity Measurement Specialties
Series -
Package Tube
Product Status Obsolete
Applications Board Mount
Pressure Type Absolute
Operating Pressure 14.5PSI (100kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 150 mV (5V)
Accuracy ±0.2%
Voltage - Supply 20V
Port Size -
Port Style No Port
Features -
Termination Style SMD (SMT) Tab
Maximum Pressure 145.04PSI (1000kPa)
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SMD Module
Supplier Device Package -
Base Product Number 32540
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1375636-325401000-00
Ultra Librarian 3D Model Ultra Librarian 325401000-00 CAD Model

Description

The 1375636-325401000-00 is an obsolete pressure sensor from TE Connectivity Measurement Specialties.

  • Mounting Type: Surface Mount
  • Package / Case: 8-SMD Module
  • Operating Temperature: -40°C ~ 125°C
  • Voltage - Supply: 20V
  • Output Type: Wheatstone Bridge
  • Accuracy: ±0.2%
  • Pressure Type: Absolute
  • Operating Pressure: 14.5PSI (100kPa)
  • Max Pressure: 145.04PSI (1000kPa)
