42547-2 TE Connectivity
Same model may have multiple batches, images only for reference.

42547-2

Part No 42547-2
Manufacturer TE Connectivity
Catalog Terminals

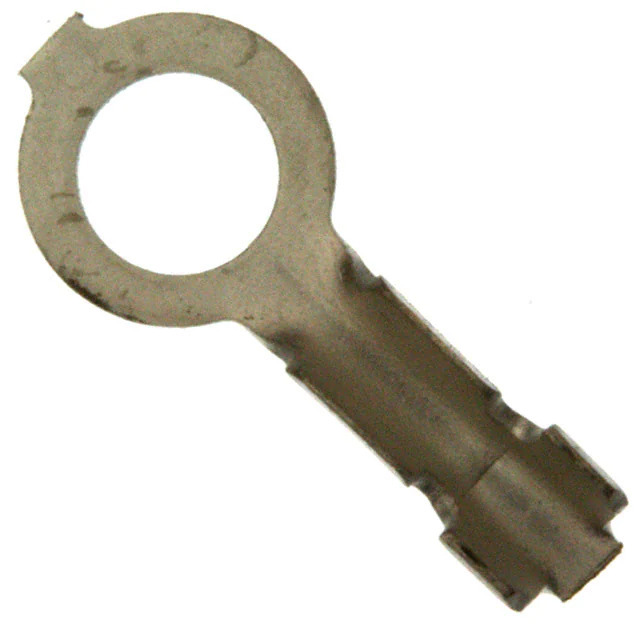

Description CONN RING CIRC 22-26AWG #4 CRIMP / Ring Terminal Connector 4 Stud Circular 22-26 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size 4 Stud
Thickness 0.014" (0.36mm)
Width - Outer Edges 0.190" (4.83mm)
Length - Overall 0.425" (10.80mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 22-26 AWG
Insulation Non-Insulated
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Material - Insulation -
Base Product Number 42547
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364988-42547-2
Ultra Librarian 3D Model Ultra Librarian 42547-2 CAD Model

Description

The 1364988-42547-2 is a ring connector offered by TE Connectivity AMP Connectors.

  • Terminal Type: Circular
  • Wire Gauge: 22-26 AWG
  • Contact Material: Brass
  • Contact Finish: Tin
  • Overall Length: 0.425" (10.80mm)
  • Insulation Diameter: 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
  • Insulation: Non-Insulated
  • Termination: Crimp
