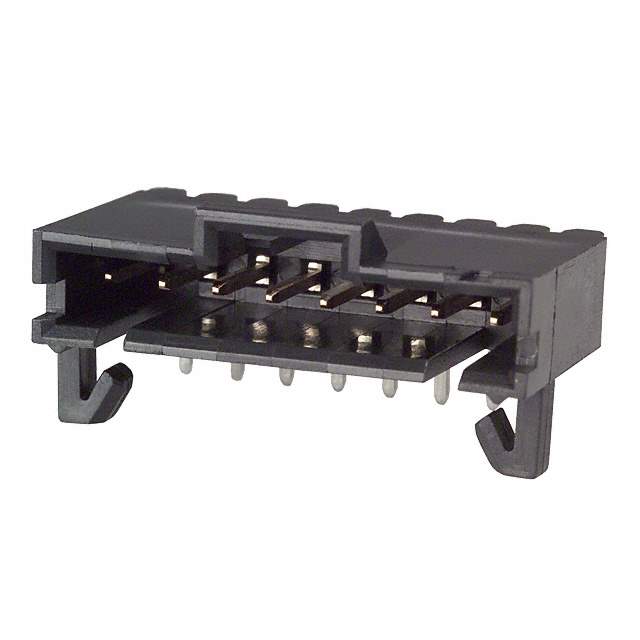

5-103904-7 Real Image
Same model may have multiple batches, images only for reference.

5-103904-7

Part No 5-103904-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 2.54MM / Connector Header Through Hole, Right Angle 8 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.200" (5.08mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Features Board Lock, Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 103904
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-5-103904-7,51039047,-5-103904-7-SI,A35023,-5-103904-7-CSI
Standard Package 1,656
Win Source Part Number 1334503-5-103904-7
Ultra Librarian 3D Model Ultra Librarian 5-103904-7 CAD Model

Description

The TE Connectivity AMP Connectors 1334503-5-103904-7 is a header male pin connector that is designed for use in various applications.

  • Mounting Type: Through-Hole
  • Mounting Angle: Right Angle
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Contact Finish-Mating: Gold
  • Contact Finish-Post: Tin
  • RoHS3 Compliant: Yes
