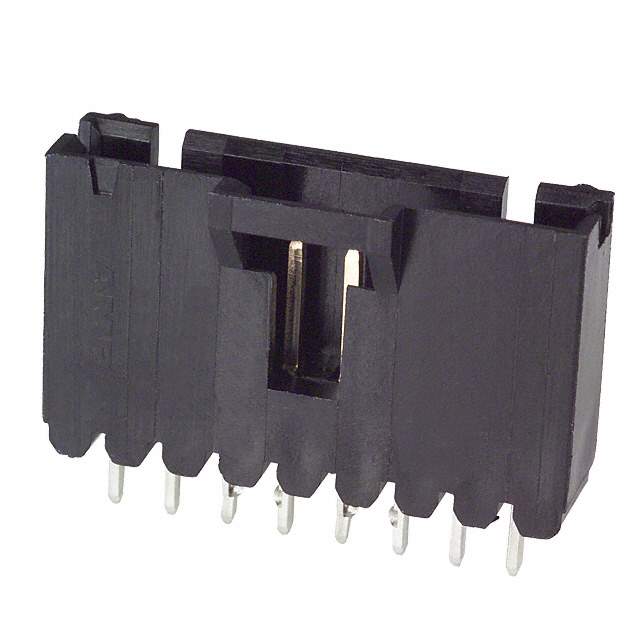

The TE Connectivity AMP Connectors 104809-7 is a through-hole header with 8 positions and one row.

• Mounting Type: Through-Hole
• Number of Positions: 8
• Number of Rows: One
• Contact Gender: Male Pins
• Connection Type: Board-to-Board or Cable
• Pitch: 0.100" (2.54mm)
• Contact Material: Brass
• Current Rating: 3A
• Applications: Automotive, General Purpose, Medical, and Telecommunications
• Contact Finish (Mating): Gold
• Contact Finish (Post): Tin
• Packaging: Tube
• Overall Contact Length: 0.545" (13.84mm)
• Insulation Height: 0.535" (13.60mm)
• Operating Temperature: -65°C and 105°C
• ROHS Compliant: Yes
