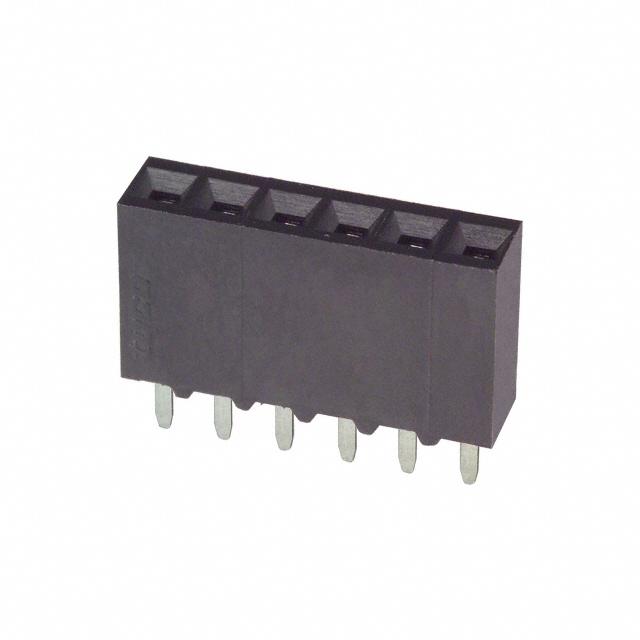

5-534237-4 TE Connectivity
Same model may have multiple batches, images only for reference.

5-534237-4

Part No 5-534237-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RECEPT 6POS .100 VERT GOLD
Datasheet
5-534237-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPMODU Mod IV
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Insulation Color Black
Insulation Height 0.340" (8.64mm)
Contact Length - Post 0.115" (2.92mm)
Operating Temperature Range -65°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating 2A
Insulation Material Polyester, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 150μin (3.81μm)
Win Source Part Number 764020-5-534237-4
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5-534237-4 CAD Model

Description

{"ProductId":702398,"FormattedDescription":"

The TE Connectivity AMP Connectors 764020-5-534237-4 is a medium popularity electronic component that is balanced in supply and demand.

  • Positions: 6
  • Mounting: Through Hole
  • Application: Board to Board or Cable
  • Voltage Rating: -
  • Current Rating: 2A
"}
