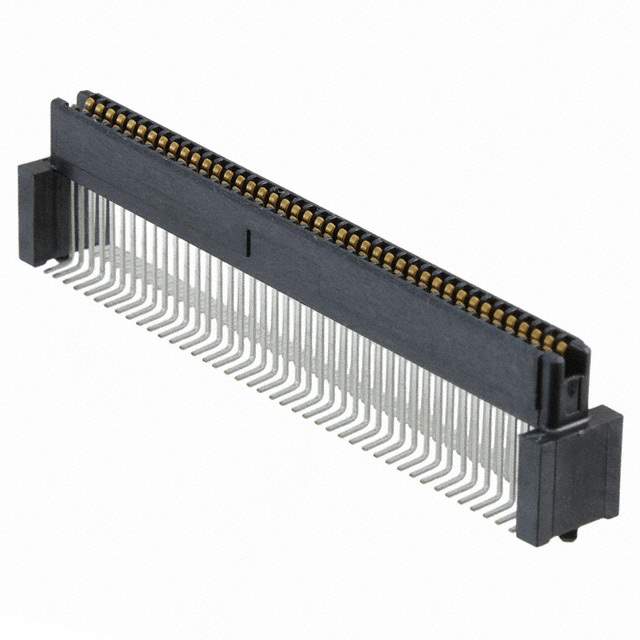

5120521-2 Real Image
Same model may have multiple batches, images only for reference.

5120521-2

Part No 5120521-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 84POS SMD GOLD / 84 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity AMP Connectors
Series Free Height (FH) IEEE 1386, PMC
Package Tape & Reel (TR) Cut Tape (CT)
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 84
Pitch 0.039" (1.00mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 8mm, 9mm, 10mm
Height Above Board 0.212" (5.38mm)
Base Product Number 5120521
Standard Package 650
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1341362-5120521-2
Ultra Librarian 3D Model Ultra Librarian 5120521-2 CAD Model

Description

The TE Connectivity AMP Connectors 5120521 is a rectangular connector array with 84 positions.

  • Series: Free Height (FH) IEEE 1386, PMC
  • Pitch: 0.039" (1.00mm)
  • Contact Type: Outer Shroud Contacts Receptacle
  • Feature: Board Guide
  • Mounting: Surface Mount
  • Packaging: Tape and Reel (TR) Cut Tape (CT)
  • Height Above Board: 0.212" (5.38mm)
It is a reliable product.
