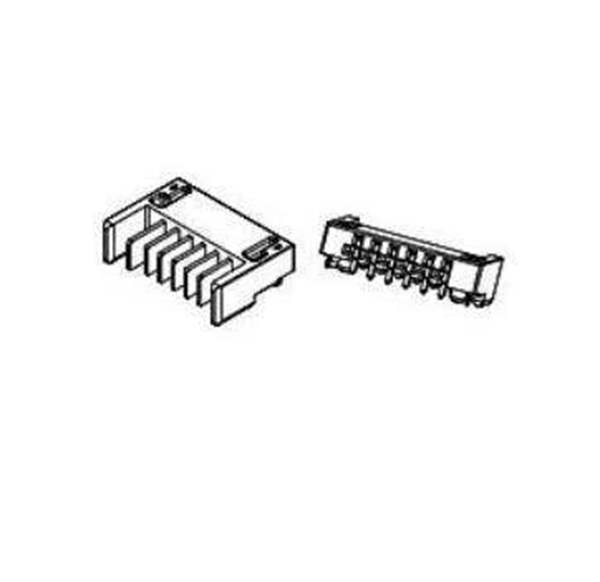

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Blade Type Power Connectors Blade Type Power Connector Assemblies
Package Tube
Product Status Active
Connector Type Header, Male Blades
Pitch 0.079" (2.00mm)
Mounting Type Board Edge, Through Hole, Right Angle
Termination Solder
Features Board Guide, Board Lock
Fastening Type Push-Pull
Win Source Part Number WS1208988-5146877-3
Ultra Librarian 3D Model Ultra Librarian 5146877-3 CAD Model

Description

6 Position Header, Male Blades Connector Solder 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
