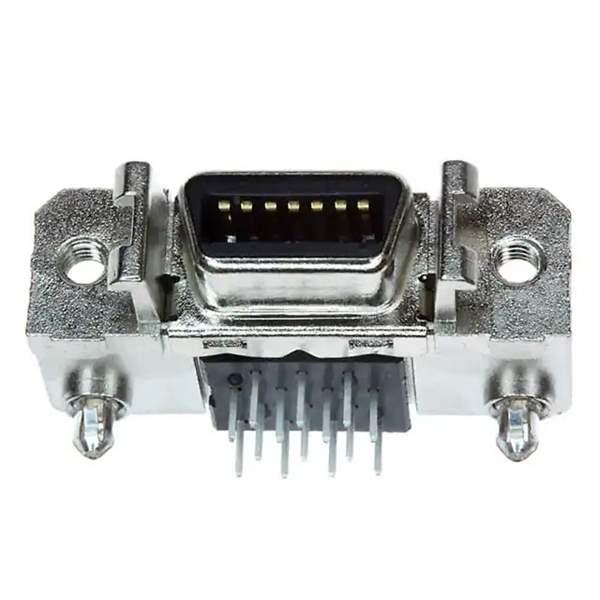

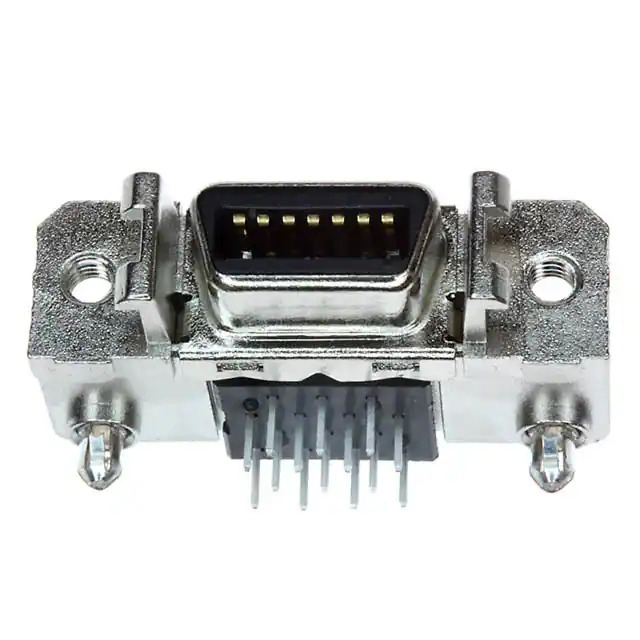

5178238-1 TE Connectivity
Same model may have multiple batches, images only for reference.

5178238-1

Part No 5178238-1
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN RCPT 14POS R/A SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr TE Connectivity AMP Connectors
Series CHAMP .050 II
Package Box
Product Status Active
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 14
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Board Side (M2.6); Latchblocks
Type -
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 11.8µin (0.30µm)
Base Product Number 5178238
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1377492-5178238-1
Ultra Librarian 3D Model Ultra Librarian 5178238-1 CAD Model

Description

The TE Connectivity AMP Connectors Centronics Connector is a reliable and versatile solution for your electrical connection needs.

  • Contact Finish: Gold
  • Contact Finish Thickness: 11.8μin (0.30μm)
  • Design: Receptacle
  • Number of Positions: 14
  • Number of Rows: 2
  • Mounting Type: Panel Mount, Through Hole, Right Angle
  • Board Lock: Yes
  • Series: CHAMP .050 II
  • Status: Active
