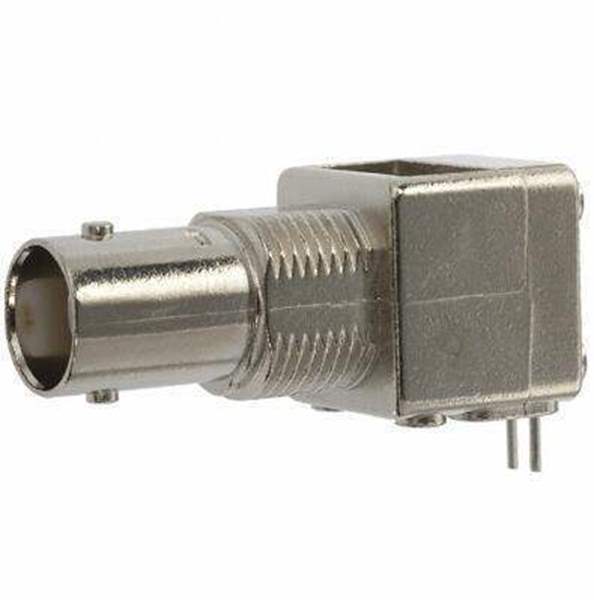

5227676-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5227676-1

Part No 5227676-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC JACK R/A 50 OHM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Package Bulk
Product Status Active
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Center Contact Material Phosphor Bronze
Manufacturer TE Connectivity AMP Connectors
Win Source Part Number WS1209156-5227676-1
Ultra Librarian 3D Model Ultra Librarian 5227676-1 CAD Model

Description

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
