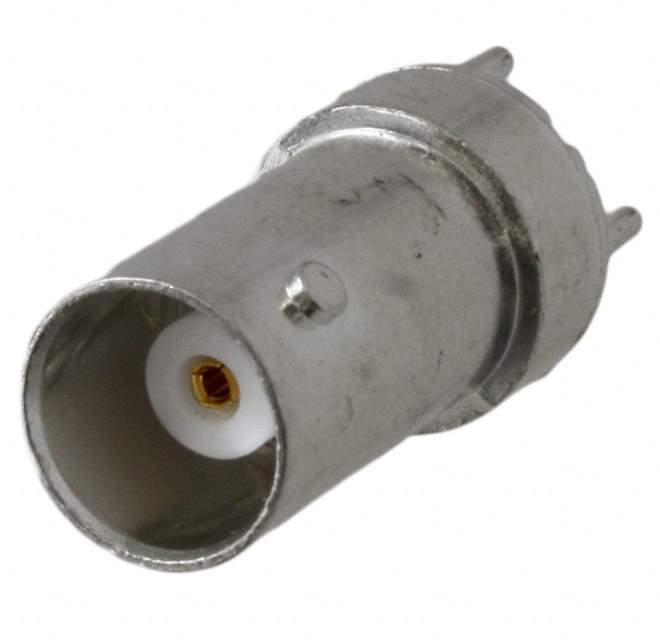

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Through Hole
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Beryllium Copper
Body Material Zinc
Body Finish Tin
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 500 V
Mating Cycles 500
Base Product Number 5413969
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 5413969-2-ND,2266-5413969-2,A101951,-5413969-2-SI,54139692
Standard Package 100
Win Source Part Number 1331961-5413969-2
Ultra Librarian 3D Model Ultra Librarian 5413969-2 CAD Model

Description

The 5413969-2 is a BNC coaxial connector assembly manufactured by TE Connectivity AMP Connectors.

  • Connector Type: Jack, female socket
  • Fastening Type: Bayonet lock
  • Impedance: 50Ohm
  • Mounting: Through hole
  • Body Material: Zinc
  • Center Contact Material: Beryllium copper
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
