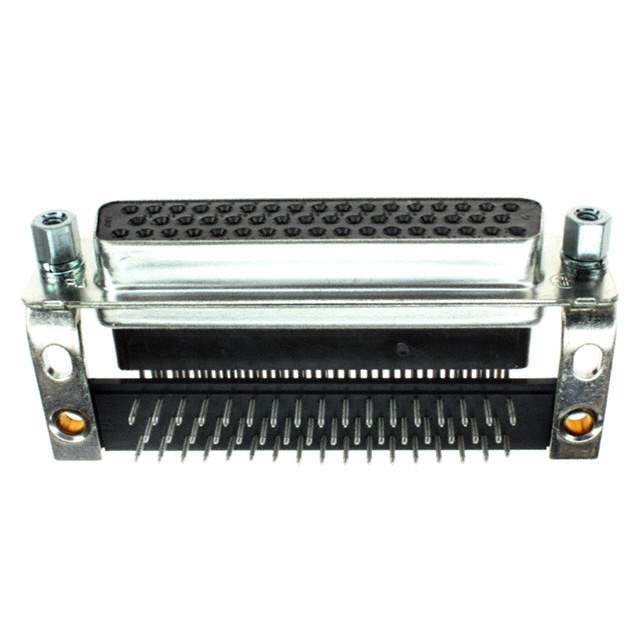

5747193-2 Real Image
Same model may have multiple batches, images only for reference.

5747193-2

Part No 5747193-2
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 50POS R/A SLDR / 50 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 50
Number of Rows 3
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 5 (DD, D)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.545" (13.84mm)
Features Mounting Brackets
Voltage Rating 125V
Color Black
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747193
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 57471932,-5747193-2-SI,A32159
Standard Package 7
Win Source Part Number 1176441-5747193-2
Ultra Librarian 3D Model Ultra Librarian 5747193-2 CAD Model

Description

The TE Connectivity AMP Connectors 5747193-2 is a D-sub connector that has 50 positions.

  • Positions: 50
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Contact Type: Signal
  • Color: Black
  • Mounting Type: Mounting Brackets
  • Contact Finish: Gold
  • Voltage Rating: 125V
  • Contact Material: Phosphor Bronze
  • Connector Style: D-Sub
  • Package: Bulk
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
  • REACH: Affected
  • HTSUS: 8536.69.4040
  • Also Known As: 57471932,-5747193-2-SI,A32159
