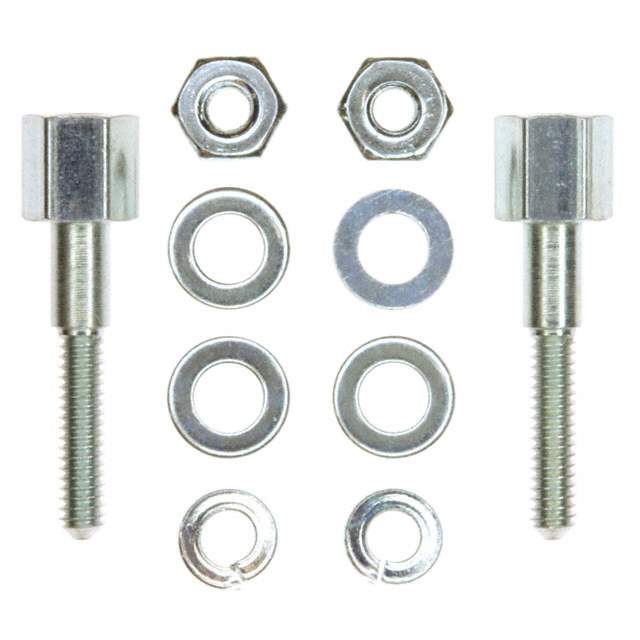

5747223-3 Real Image
Same model may have multiple batches, images only for reference.

5747223-3

Part No 5747223-3
Manufacturer TE Connectivity
Catalog D - Sub, D - Shaped Connectors - Accessories - Jackscrews
Description CONN D-SUB FEMALE SCREWLOCK KIT / Jackscrew Socket For AMPLIMITE Series HD, HDF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Jackscrews
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Bulk
Accessory Type Jackscrew Socket
For Use With/Related Products AMPLIMITE Series HD, HDF
Features Hardware Included
Length - Below Head 0.560" (14.22mm)
Thread Size 4-40 Socket, 2-56 Screw
Base Product Number 5747223
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 7318.15.2010
Win Source Part Number 1351281-5747223-3
Ultra Librarian 3D Model Ultra Librarian 5747223-3 CAD Model

Description

The AMPLIMITE HD-20 series connector jack screws from TE Connectivity AMP Connectors are designed to provide a secure and reliable connection.

  • Hardware Included: Yes
  • AMPLIMITE Series Compatibility: HD and HDF
  • Thread Size (Socket): 4-40
  • Thread Size (Screw): 2-56
  • Length (Below Head): 0.560 inches (14.22mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor undefined
  • HTSUS Code: 7318.15.2010
