Same model may have multiple batches, images only for reference.

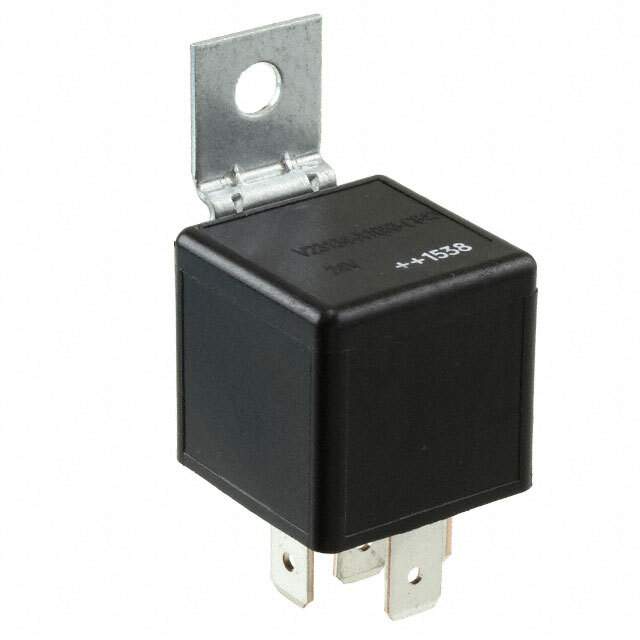

6-1393302-3 Real Image
Same model may have multiple batches, images only for reference.

6-1393302-3

Part No 6-1393302-3
Manufacturer TE Connectivity
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPDT 60A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Automotive Relays
Mfr TE Connectivity AMP Connectors
Series F4
Package Bulk
Coil Type Non Latching
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 60 A
Switching Voltage 24VDC - Nom
Must Operate Voltage 14.4 VDC
Must Release Voltage 3.2 VDC
Operate Time 7 ms
Release Time 2 ms
Mounting Type Socketable
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Temperature Range - Operating -40°C ~ 125°C
Contact Material Silver Alloy
Coil Power 1.8W
Coil Resistance 324 Ohms
Base Product Number 1393302
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1315081-6-1393302-3
Ultra Librarian 3D Model Ultra Librarian 6-1393302-3 CAD Model

Description

This automotive relay is a high-quality product from TE Connectivity AMP Connectors.

  • Win Source Part Number: 1315081-6-1393302-3
  • Series: F4
  • Coil Type: non-latching
  • Coil Voltage: 24VDC
  • Contact Rating: 60A
  • Switching Voltage: 24VDC
  • Package: bulk
  • Standard Package: one piece
  • MSL Level: not applicable
  • HTSUS: 8536.41.0050
