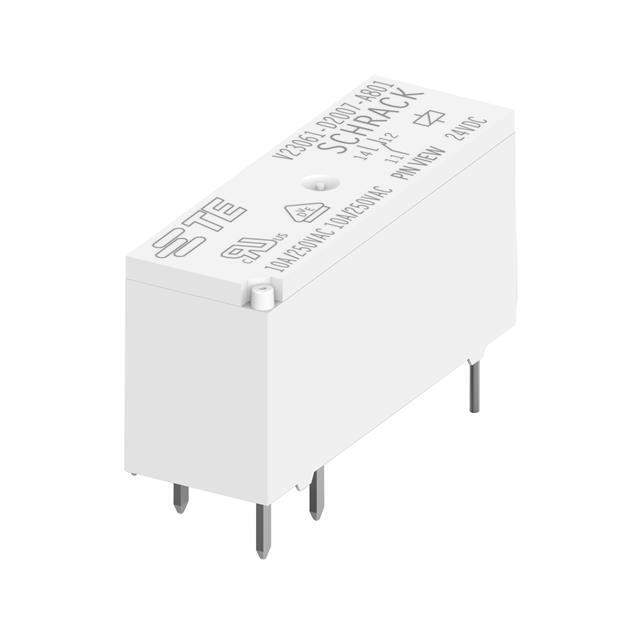

6-1416200-7 Real Image1 6-1416200-7 Real Image2
Same model may have multiple batches, images only for reference.
6-1416200-7 Real Image1 6-1416200-7 Real Image2
6-1416200-7 Real Image1 6-1416200-7 Real Image2
Same model may have multiple batches, images only for reference.

6-1416200-7

Part No 6-1416200-7
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series MSR, SCHRACK
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 400VAC - Max
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 16.3 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 2270 Ohms
Base Product Number 1416200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Other Names V23061-D2007-A801
Standard Package 1,000
Win Source Part Number 1124909-6-1416200-7
Ultra Librarian 3D Model Ultra Librarian 6-1416200-7 CAD Model

Description

This is a power relay from TE Connectivity Potter & Brumfield Relays, with a part number of 1124909-6-1416200-7.

  • Relay Type: General Purpose
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Nickel (AgNi)
  • Standard Package: 1,000
  • Coil Resistance: 2270 Ohms
  • Operate Time: 10ms
  • Release Time: 5ms
  • Seal Rating: Sealed-Flux Protection
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • Coil Insulation: Class F
  • Must Operate Voltage: 16.3VDC
  • Must Release Voltage: 2.4VDC
  • REACH: Unaffected
  • HTSUS: 8536.41.0020
  • Base Product Number: 1416200
