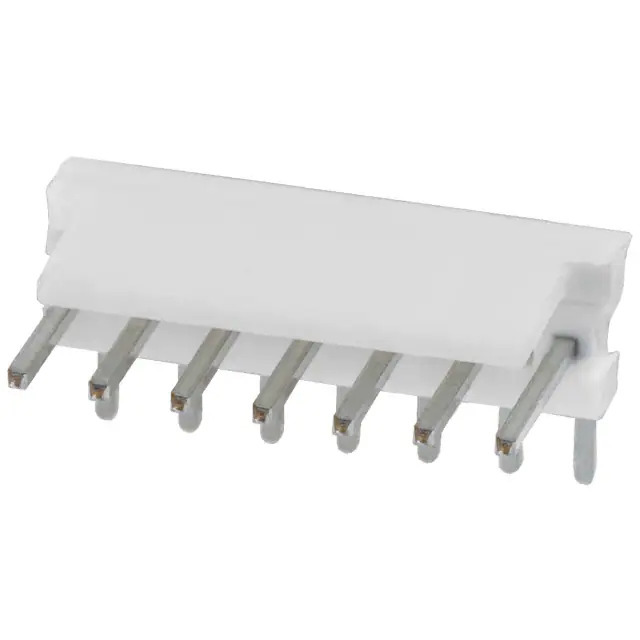

640457-7 TE Connectivity
Same model may have multiple batches, images only for reference.

640457-7

Part No 640457-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 7POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series MTA-100
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 7
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length -
Insulation Height 0.225" (5.72mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features -
Temperature Range - Operating -55°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications General Purpose
Base Product Number 640457
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1366037-640457-7
Ultra Librarian 3D Model Ultra Librarian 640457-7 CAD Model

Description

The 1366037-640457-7 is a male pin header connector manufactured by TE Connectivity AMP Connectors.

  • Series: MTA-100
  • Application: General Purpose
  • Connector Type: Header
  • Positions: 7
  • Rows: 1
  • Pitch: 0.100" (2.54mm)
  • Temperature Range: -55°C to 105°C
  • Mounting Type: Through Hole
  • Orientation: Right Angle
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Termination: Solder
  • Design: Shrouded with 1 Wall
