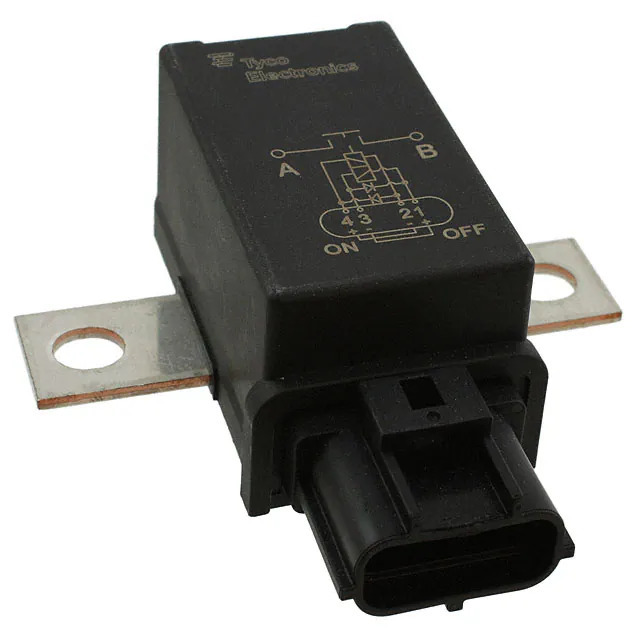

7-1414778-3 TE Connectivity
Same model may have multiple batches, images only for reference.

7-1414778-3

Part No 7-1414778-3
Manufacturer TE Connectivity
Catalog Automotive Relays
Description RELAY AUTO SPST-NO 260A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr TE Connectivity Potter & Brumfield Relays
Series V23130
Package Bulk
Product Status Active
Coil Type Latching, Dual Coil
Coil Voltage 24VDC
Contact Form SPST-NO (DM) (1 Form X)
Contact Rating (Current) 260 A
Switching Voltage 24VDC - Nom
Must Operate Voltage 12 VDC
Must Release Voltage -
Operate Time 5 ms
Release Time 5 ms
Features IP54 - Dust Protected, Water Resistant
Mounting Type Chassis Mount
Termination Style Connector
Temperature Range - Operating -40°C ~ 120°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 7W
Coil Resistance 19.9 Ohms
Base Product Number 1414778
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373474-7-1414778-3
Ultra Librarian 3D Model Ultra Librarian 7-1414778-3 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays Automotive Relay is a high-quality component designed for automotive applications.

  • Temperature Range: -40°C to 120°C
  • Series: V23130
  • Packaging: Bulk
  • IP Rating: IP54
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 24VDC
  • Contact Rating: 260A
  • Mounting: Chassis Mounting
  • Coil Type: Latching, Dual Coil
  • Response Time: 5ms
  • Coil Resistance: 19.9 Ohms
