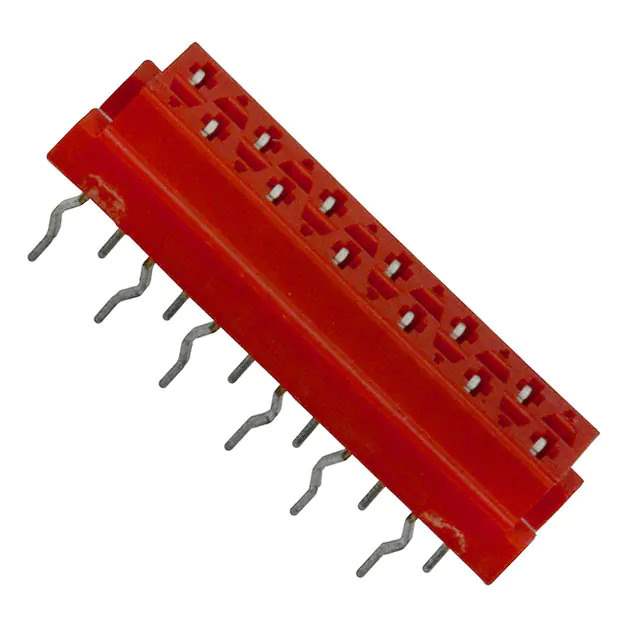

8-215079-2 Real Image
Same model may have multiple batches, images only for reference.

8-215079-2

Part No 8-215079-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 12POS 0.1 TIN PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity
Series Micro-MaTch
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Red
Insulation Height 0.157" (4.00mm)
Contact Length - Post 0.122" (3.10mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Voltage Rating 100VDC
Applications Automotive, General Purpose
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material Phosphor Bronze
Base Product Number 215079
Standard Package 250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849110-8-215079-2
Ultra Librarian 3D Model Ultra Librarian 8-215079-2 CAD Model

Description

The 849110-8-215079-2 is a rectangular connector from TE Connectivity.

  • Series: Micro-MaTch
  • Positions: 12
  • Connector Type: Receptacle
  • Contact Type: Forked
  • Mounting: Through-Hole
  • Pitch: 0.100 inches (2.54mm)
  • Connection Type: Board-to-Board or Board-to-Cable/Wire
  • Voltage Rating: 100VDC
  • Flammability Rating: UL94 V-0
