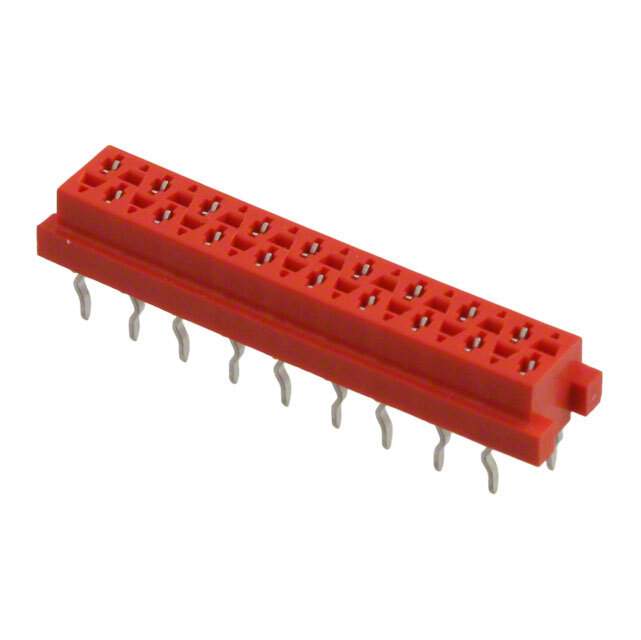

8-215079-8 Real Image
Same model may have multiple batches, images only for reference.

8-215079-8

Part No 8-215079-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description MICRO MATCH FEMALE ON BOARD CONNECTOR | CONN RCPT 18POS 0.1 TIN PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Cut Tape (CT)
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 18
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Red
Insulation Height 0.157" (4.00mm)
Contact Length - Post 0.122" (3.10mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Voltage Rating 100VDC
Applications Automotive, General Purpose
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material Phosphor Bronze
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1133881-8-215079-8
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 8-215079-8 CAD Model

Description

The TE Connectivity AMP Connectors 1133881-8-215079-8 is a through-hole receptacle connector with a push-pull fastening type. Bold the product name (e.g., BAV99S,135 → 1133881-8-215079-8) and manufacturer (e.g., Nexperia USA Inc. → TE Connectivity AMP Connectors).

  • Mounting Type: Through-hole
  • Connector Type: Receptacle
  • Fastening Type: Push-Pull
  • Positions Loaded: 18
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 100VDC
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish (Mating): Tin
  • Contact Finish (Post): Tin
  • Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Flammability Rating: UL94 V-0
  • Application: Automotive and General-Purpose
  • Insulation Color: Red
  • Packaging: Cut Tape
