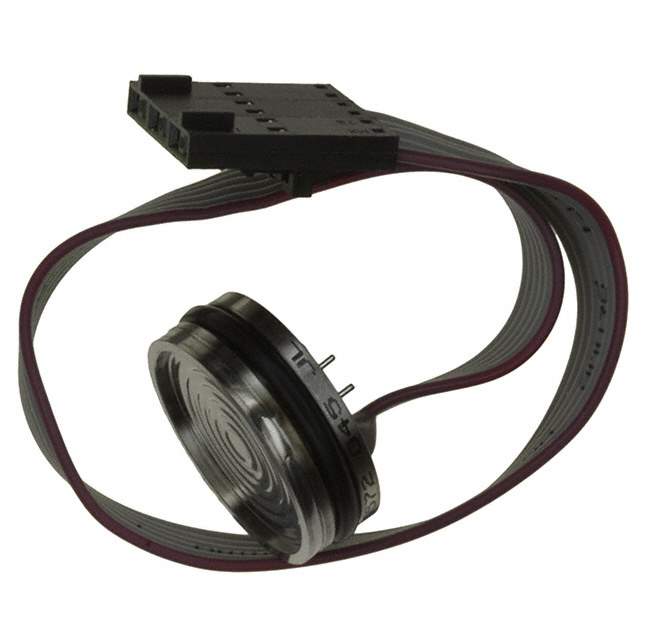

82-300A-C Real Image
Same model may have multiple batches, images only for reference.

82-300A-C

Part No 82-300A-C
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR 300PSIA RIBBON W/CONN / Pressure Sensor 300PSI (2068.43kPa) Absolute 0 mV ~ 100 mV
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr TE Connectivity Measurement Specialties
Package Tube
Applications Board Mount
Pressure Type Absolute
Operating Pressure 300PSI (2068.43kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.1%
Port Style No Port
Features Temperature Compensated
Termination Style Cable with Connector
Maximum Pressure 900PSI (6205.28kPa)
Temperature Range - Operating -40°C ~ 125°C
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 9026.20.4000
Other Names MSP6935-ND,MSP6935,223-1240-5,82300AC,2266-82-300A-C
Standard Package 1
Win Source Part Number 1035875-82-300A-C
Ultra Librarian 3D Model Ultra Librarian 82-300A-C CAD Model

Description

The 895725 pressure sensor is a temperature compensated sensor with a Wheatstone bridge output type.

  • Accuracy: ±0.1%
  • Pressure Type: Absolute
  • Pressure Range: 300PSI (2068.43kPa)
  • Maximum Pressure: 900PSI (6205.28kPa)
  • Termination Style: Cable with Connector
  • Package: Tube
  • Mounting Type: Board Mount
  • Port Style: Not Specified
  • Voltage Supply: Not Specified
  • Package/Case: Not Specified
  • Operating Temperature Range: -40°C to 125°C
  • Manufacturer: TE Connectivity Measurement Specialties
  • Cross-Reference: MSP6935-ND, MSP6935, 223-1240-5, 82300AC, 2266-82-300A-C
