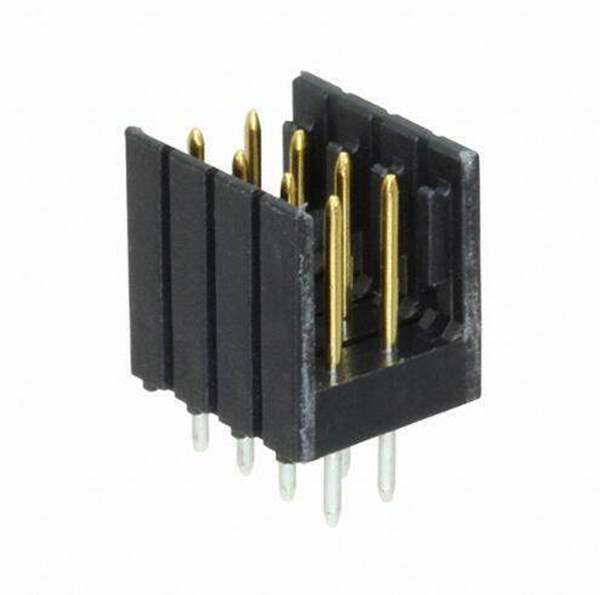

826469-4 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

826469-4

Part No 826469-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Packaging  Bulk
Part Status Active
Contact Type Male Pin
Shrouding Shrouded - 2 Wall
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.394" (10.00mm)
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Contact Material Phosphor Bronze
Win Source Part Number WS1304380-826469-4
Ultra Librarian 3D Model Ultra Librarian 826469-4 CAD Model

Description

Connector Header Through Hole 8 position 0.100" (2.54mm)
