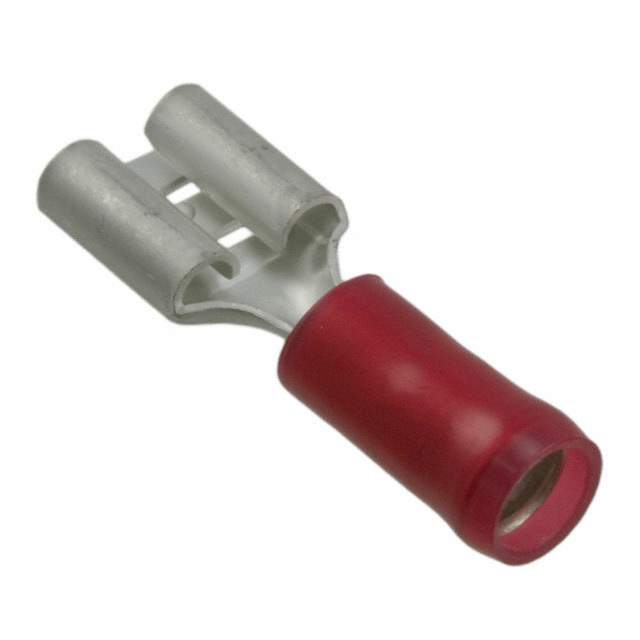

9-160583-5 Real Image
Same model may have multiple batches, images only for reference.

9-160583-5

Part No 9-160583-5
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 15.5-22AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 15.5-22 AWG Crimp Connector Non-Mating End Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.303" (7.70mm)
Length - Overall 0.874" (22.20mm)
Termination Crimp
Wire Gauge 15.5-22 AWG
Insulation Non-Mating End Insulated
Mounting Free Hanging (In-Line)
Color Red
Contact Material Phosphor Bronze
Contact Finish Tin
Insulation Diameter 0.138" (3.51mm)
Base Product Number 160583
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 91605835,2266-9-160583-5
Standard Package 1,000
Win Source Part Number 1333514-9-160583-5
Ultra Librarian 3D Model Ultra Librarian 9-160583-5 CAD Model

Description

The 1333514-9-160583-5 is a female quick connect terminal from TE Connectivity AMP Connectors.

  • Series: Quick Connect/Disconnect
  • Packaging: Bulk
  • Standard Package: 1,000
  • ECCN: EAR99
  • HTSUS: 8536.90.4000
  • Termination: Crimp
  • Wire Gauge: 15.5-22 AWG
  • Insulation Diameter: 0.138" (3.51mm)
  • Tab Width: 0.250" (6.35mm)
  • Suitable for: Applications such as automotive, industrial, and consumer electronics.
