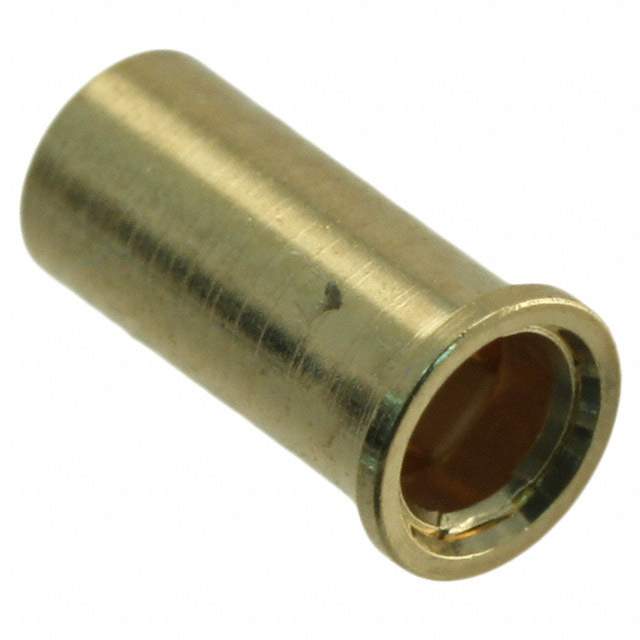

Same model may have multiple batches, images only for reference.

0372-0-15-15-13-27-10-0

Name: 0372-0-15-15-13-27-10-0
Brand: Mill-Max Manufacturing Corp.
SKU: 772231
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0372-0-15-15-13-27-10-0
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Terminals
Description	CONN PIN RCPT .048-.064 SOLDER / Contact SKT 13 Size Solder ST Thru-Hole Bulk
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Series	0372
Packaging	Bulk
Tail Type	No Tail
Termination	Solder
Length - Overall	0.225" (5.72mm)
Accepts Pin Diameter	0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Mounting Hole Diameter	0.102" (2.59mm)
Pin Hole Diameter	0.088" (2.24mm)
Flange Diameter	0.118" (3.00mm)
Socket Depth	0.225" (5.72mm)
Contact Material	Beryllium Copper
Contact Finish	Gold
Contact Finish Thickness	30μin (0.76μm)
Operating Temperature Range	-55°C ~ 125°C
Win Source Part Number	772231-0372-0-15-15-13-27-10-0
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	500
Family Name	0372
Introduction Date	December 27, 2007
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian 0372-0-15-15-13-27-10-0 CAD Model

Alternative Products

Description

The 772231-0372-0-15-15-13-27-10-0 is a circular connector from Mill-Max Manufacturing Corp.

Series: 0372
Length: 0.225" (5.72mm)
Material: Beryllium Copper
Contact Finish: Gold
Contact Finish Thickness: 30μin (0.76μm)
Pin Diameter: 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Mounting Hole Diameter: 0.102" (2.59mm)
Temperature Range: -55°C to 125°C
ECCN: EAR99
