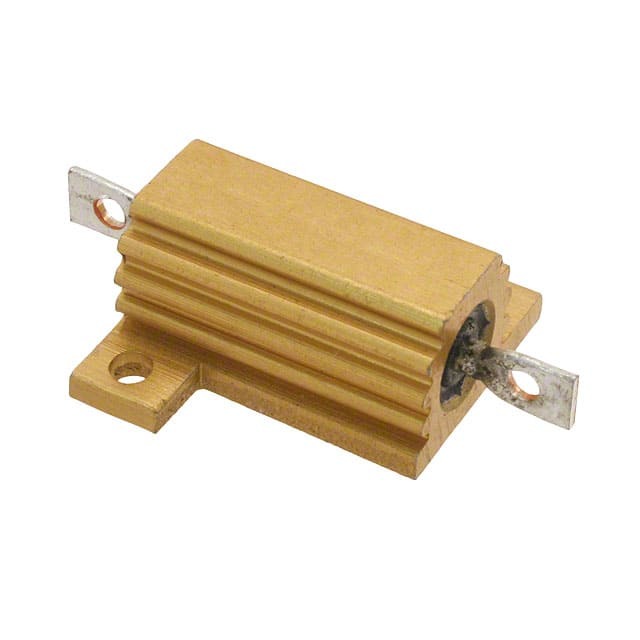

Same model may have multiple batches, images only for reference.
HSA10820RJ TE Connectivity
Same model may have multiple batches, images only for reference.

HSA10820RJ

Part No HSA10820RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 820 Ohms
Tolerance ±5%
Power (Watts) 16W
Composition Wirewound
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 0.827" L x 0.827" W (21.00mm x 21.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1315579-HSA10820RJ
Ultra Librarian 3D Model Ultra Librarian HSA10820RJ CAD Model

Description

The HSA10820RJ is a wirewound chassis mount resistor designed by TE Connectivity Passive Product. TE Connectivity Passive Product

  • Power Rating: 16W
  • Resistance: 820 Ohms
  • Temperature Range: -55°C to 200°C
  • Mounting Feature: Flange
  • Package: Axial, Box
  • Supply and Demand Status: Limited
