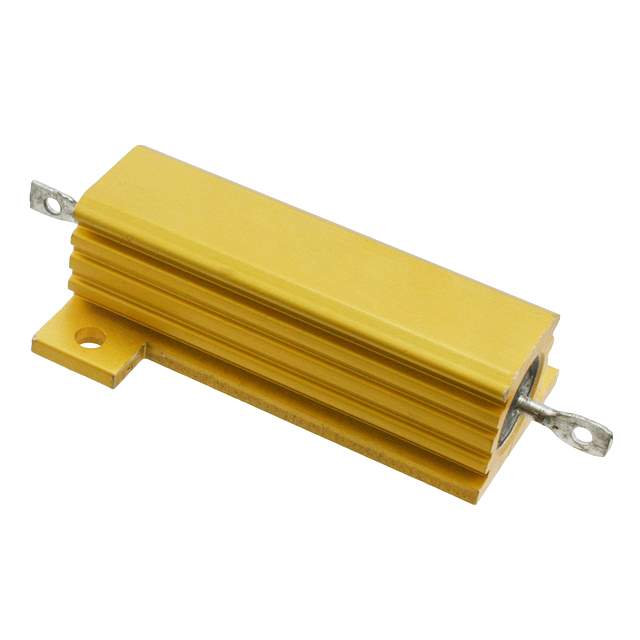

HSA5075RJ Real Image
Same model may have multiple batches, images only for reference.

HSA5075RJ

Part No HSA5075RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 75 OHM 5% 50W / Res Wirewound 75 Ohm 5% 50W ±50ppm/°C Aluminum Housed AXL Chassis Mount Loose/Tray
Datasheet
HSA5075RJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer TE Connectivity Passive Product
Series HS, CGS
Packaging Bulk
Resistance (Ohms) 75
Tolerance ±5%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Operating Temperature Range -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 2.008" L x 1.181" W (51.00mm x 30.00mm)
Height - Seated (Maximum) 0.669" (17.00mm)
Lead Style Solder Lugs
Package Axial, Box
Win Source Part Number 793800-HSA5075RJ
Popularity Medium
Supply and Demand Status Limited
Family Name HS
Introduction Date March 17, 2008
Country of Origin Czech Republic, India
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian HSA5075RJ CAD Model

Description

The HSA5075RJ is a Resistor designed for use in various applications from TE Connectivity Passive Product.

  • Type: Wirewound
  • Power: 50W
  • Resistance: 75 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Mounting Feature: Flanges
  • Lead Style: Solder Lugs
  • Package: Axial, Box
  • Coating/Housing Type: Aluminum
  • Dimension: 2.008" L x 1.181" W (51.00mm x 30.00mm)
  • Height - Seated (Maximum): 0.669" (17.00mm)
  • Alternative Parts (Cross-Reference): WH50-75RJI, WH50T-75RJI, RH05075R00JE02, NH05075R00JE02
  • Introduction Date: March 17, 2008
  • Country of Origin: Czech Republic, India
  • Estimated EOL Date: 2028
  • Popularity: Medium
