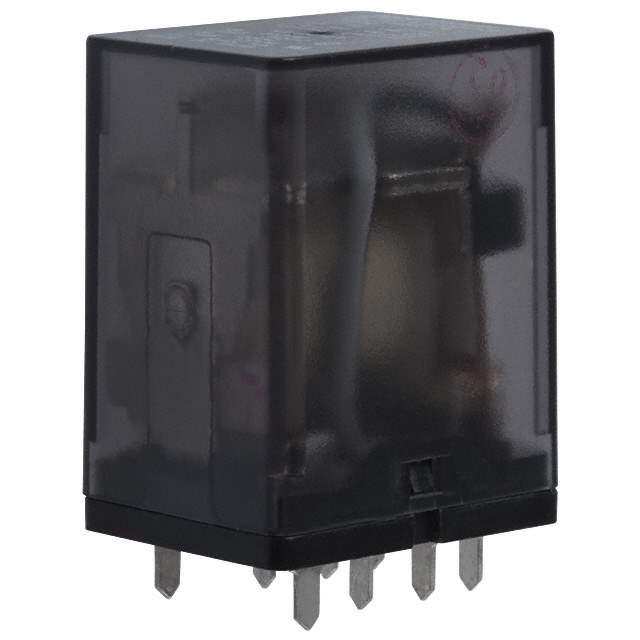

K10P-11D55-110 Real Image
Same model may have multiple batches, images only for reference.

K10P-11D55-110

Part No K10P-11D55-110
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 15A 110V / General Purpose Relay DPDT (2 Form C) 110VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series K10
Package Tray
Mounting Type Through Hole
Coil Voltage 110VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 15 A
Switching Voltage 120VAC - Max
Coil Current 10 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class B
Must Operate Voltage 82.5 VDC
Operate Time 13 ms
Release Time 10 ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 11 kOhms
Base Product Number K10P
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0075
Other Names PB451-NDR,K10P11D55110,6-1393144-5,PB451
Standard Package 25
Win Source Part Number 1011185-K10P-11D55-110
Ultra Librarian 3D Model Ultra Librarian K10P-11D55-110 CAD Model

Description

The K10P-11D55-110 is a power relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Relay Type: DPDT (2 Form C)
  • Contact Rating: 15 A
  • Switching Voltage: 120VAC - Max
  • Coil Voltage: 110VDC
  • Coil Resistance: 11 kOhms
