Same model may have multiple batches, images only for reference.

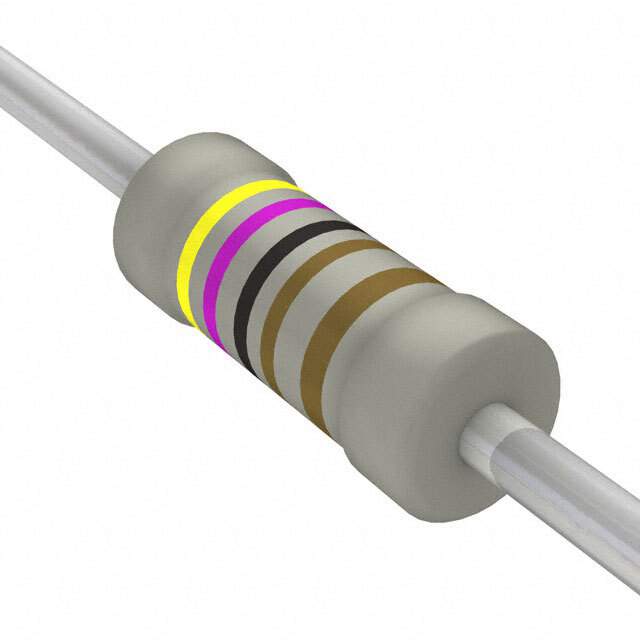

LR1F4K7 Real Image
Same model may have multiple batches, images only for reference.

LR1F4K7

Part No LR1F4K7
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description RES 4.7K OHM 1% 0.6W AXIAL / 4.7 kOhms ±1% 0.6W Through Hole Resistor Axial Metal Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr TE Connectivity Passive Product
Series LR, Neohm
Package Cut Tape (CT) Tape & Box (TB)
Resistance 4.7 kOhms
Tolerance ±1%
Power (Watts) 0.6W
Composition Metal Film
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.091" Dia x 0.244" L (2.30mm x 6.20mm)
Number of Terminations 2
Base Product Number LR1F
Standard Package 4,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1337788-LR1F4K7
Ultra Librarian 3D Model Ultra Librarian LR1F4K7 CAD Model

Description

The TE Connectivity Passive Product LR1F4K7 is a through-hole resistor in the LR series.

  • Series: LR
  • Package: Cut Tape (CT), Tape & Box (TB)
  • Size / Dimension: 0.091" Dia x 0.244" L (2.30mm x 6.20mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Power (Watts): 0.6W
  • Composition: Metal Film
  • Number of Terminations: 2
  • Resistance: 4.7 kOhms
  • Package / Case: Axial
  • Temperature Range: -55°C to 155°C
