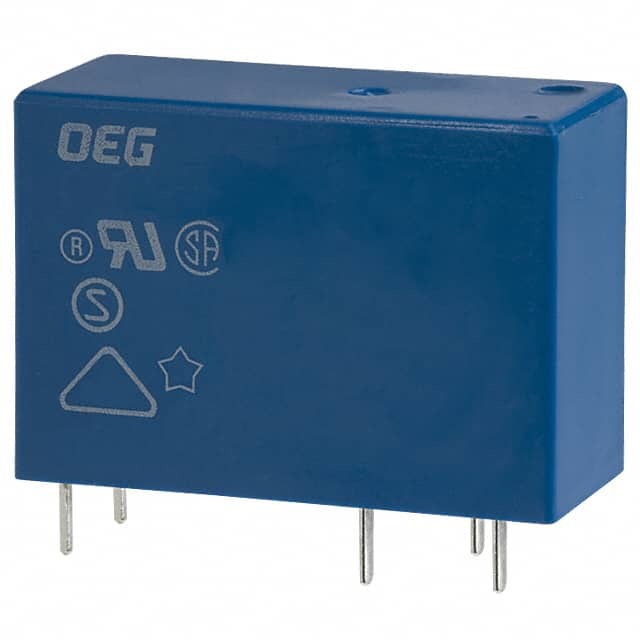

OMI-SH-224L,594 TE Connectivity
Same model may have multiple batches, images only for reference.

OMI-SH-224L,594

Part No OMI-SH-224L,594
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series OMI, OEG
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 22.5 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 18 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 8 ms
Temperature Range - Operating -30°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.1 kOhms
Base Product Number OMI-SH
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Other Names 3-1440001-4,PB883
Standard Package 20
Win Source Part Number 1078879-OMI-SH-224L,594
Ultra Librarian 3D Model Ultra Librarian OMI-SH-224L,594 CAD Model

Description

The OMI-SH-224L,594 is a power relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Win Source Part Number: 1078879-OMI-SH-224L,594
  • Series: OMI, OEG
  • Contact Form: DPDT (2 Form C)
  • Contact Material: silver tin oxide (AgSnO)
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.1 kOhms
  • Coil Current: 22.5 mA
  • Switching Voltage: 250VAC and 30VDC - Max
  • Contact Rating (current): 5A
  • Release Time: 8 ms
  • Operate Time: 20 ms
  • Mounting Type: through-hole
  • Temperature Range: -30°C to 70°C
