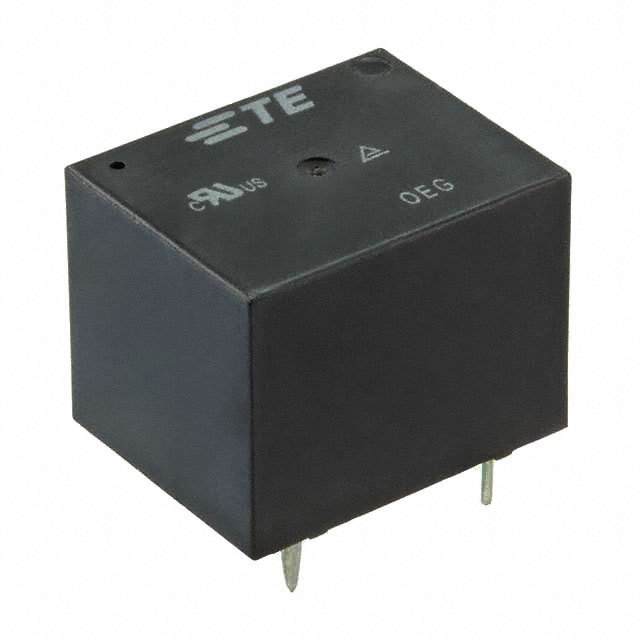

ORWH-SH-124DM1F TE Connectivity
Same model may have multiple batches, images only for reference.

ORWH-SH-124DM1F

Part No ORWH-SH-124DM1F
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 24V
Datasheet
ORWH-SH-124DM1F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 15mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 277VAC, 28VDC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class F, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 1.6 kOhms
Temperature Range - Operating -30°C to 70°C
Win Source Part Number 264230-ORWH-SH-124DM1F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ORWH-SH-124DM1F CAD Model

Description

The TE Connectivity Potter & Brumfield Relay is a general-purpose relay with a single pole, single throw contact form.

  • Contact Form: single pole, single throw
  • Seal: sealed fully
  • Insulation: insulation class F
  • Coil Resistance: 1.6 kOhms
  • Coil Current: 15mA
  • Operating Time: 10ms
  • Release Time: 5ms
  • Coil Voltage: 24VDC
  • Contact Rating: 10A
  • Switching Voltage: up to 277VAC and 28VDC
  • Turn-on Voltage: 16.8VDC
  • Turn-off Voltage: 2.4VDC
  • Coil Power: 360mW
  • Mounting: through a hole
  • Temperature Range: -30°C to 70°C
