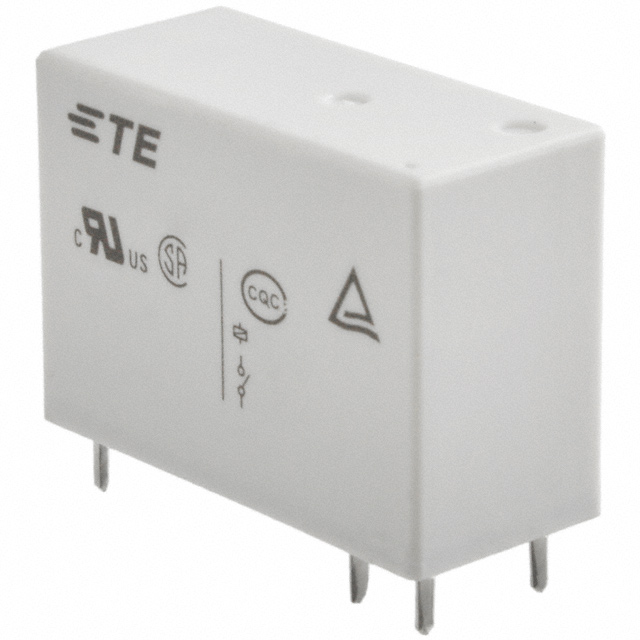

OZ-SS-124DM1,200 TE Connectivity
Same model may have multiple batches, images only for reference.

OZ-SS-124DM1,200

Part No OZ-SS-124DM1,200
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V
Datasheet
OZ-SS-124DM1,200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 29.3mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 240VAC, 24VDC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 15ms
Release Time 8ms
Features Insulation - Class A, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 720 mW
Coil Resistance 820 Ohms
Temperature Range - Operating -30°C to 55°C
Win Source Part Number 132546-OZ-SS-124DM1,200
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian OZ-SS-124DM1,200 CAD Model

Description

The OZ-SS-124DM1,200 is a relay component manufactured by TE Connectivity Potter & Brumfield Relays.

  • Popularity: Medium
  • Supply and demand status: limited
  • Designed to: Provide reliable and efficient performance
  • Used in: Various electronic devices and applications
  • Known for: High-quality and durability
  • Relay type: general-purpose
  • Contact rating: 16A
  • Switching voltage: 240VAC, 24VDC - Max
  • Temperature range of operation: -30°C to 55°C
