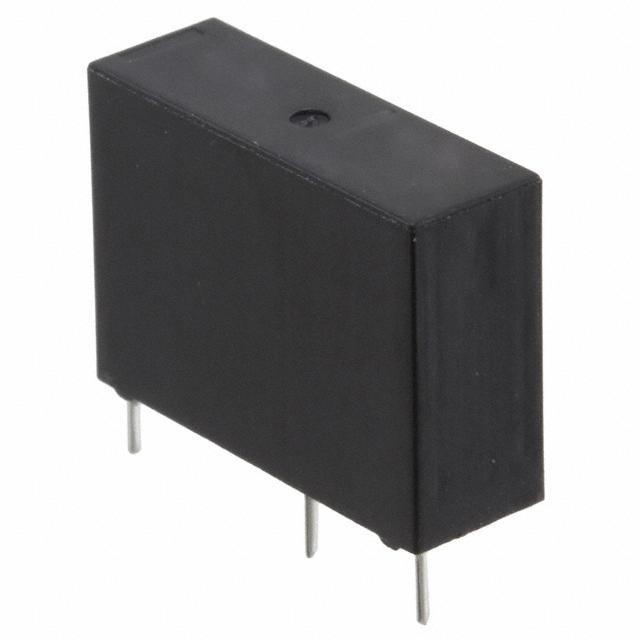

PCJ-112D3M,301 TE Connectivity
Same model may have multiple batches, images only for reference.

PCJ-112D3M,301

Part No PCJ-112D3M,301
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 3A 12V
Datasheet
PCJ-112D3M,301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 10ms
Release Time 4ms
Features Insulation - Class A, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 720 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 1001706-PCJ-112D3M,301
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PCJ-112D3M,301 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays PCJ-112D3M,301 is a general-purpose relay that is designed for use in various applications.

  • Contact Form: SPST-NO (1 Form A)
  • Switching Voltage: 250VAC, 30VDC - Max
  • Coil Voltage: 12VDC
  • Coil Resistance: 720 Ohms
  • Turn On Voltage (Max): 9 VDC
  • Turn Off Voltage (Min): 0.6 VDC
  • Mechanical Life: 10ms
  • Contact Rating (current): 3A
  • Temperature Range: -40°C to 85°C
