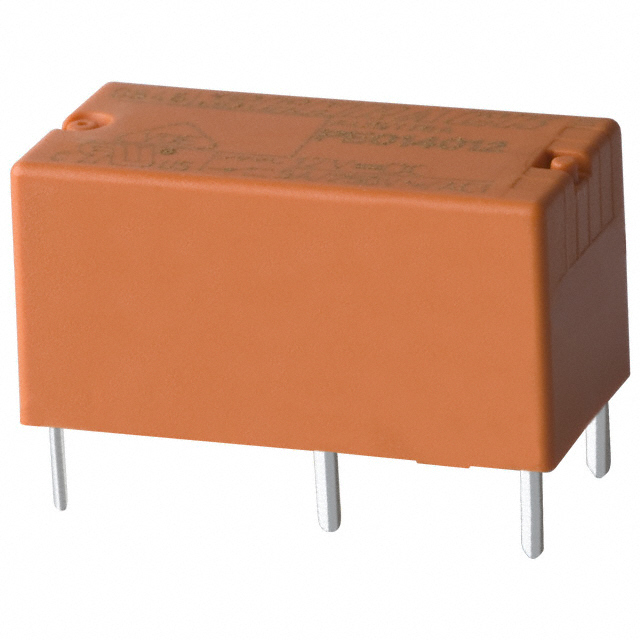

Same model may have multiple batches, images only for reference.
PE014F05 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PE014F05

Part No PE014F05
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr TE Connectivity Potter & Brumfield Relays
Series PE, SCHRACK
Packaging Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 5 A
Switching Voltage 400VAC - Max
Load - Max Switching 2000VA
Coil Current 40 mA
Coil Type Latching, Single Coil
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 3.75 VDC
Operate Time 8 ms
Release Time 8 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Approval Agency cURus, VDE
Relay Type General Purpose
Coil Resistance 125 Ohms
Base Product Number 1415390
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1478376-PE014F05
Ultra Librarian 3D Model Ultra Librarian PE014F05 CAD Model
