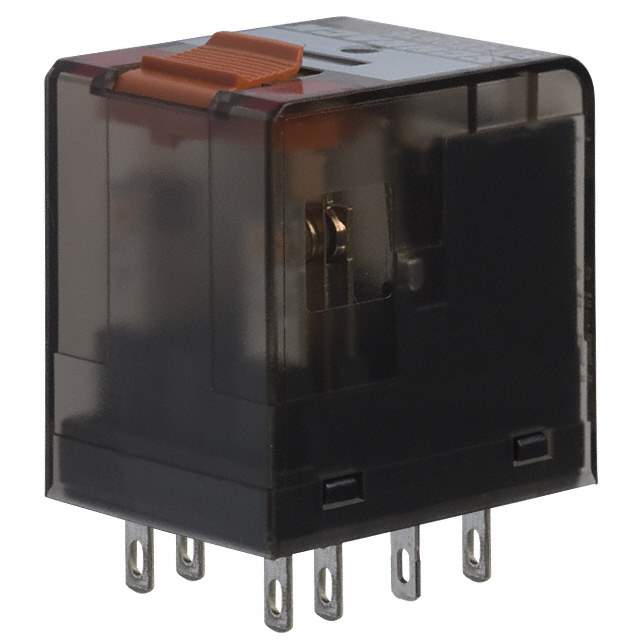

PT370024 Real Image
Same model may have multiple batches, images only for reference.

PT370024

Part No PT370024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 3PDT 10A 24V  /  General Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series PT, SCHRACK
Package Bulk
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form 3PDT (3 Form C)
Contact Rating (Current) 10 A
Switching Voltage 400VAC - Max
Coil Current 30.8 mA
Coil Type Non Latching
Features Mechanical Indicator, Test Button
Termination Style Plug In, Quick Connect - 0.110" (2.8mm)
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 777 Ohms
Base Product Number PT370
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Other Names PB910,-PT370024-SI,6-1419111-1
Standard Package 10
Win Source Part Number 1112180-PT370024
Ultra Librarian 3D Model Ultra Librarian PT370024 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays PT370024 is a high-quality power relay that is designed to provide excellent performance.

  • Contact Arrangement: 3PDT (3 Form C)
  • Contact Rating: 10 A
  • Switching Voltage: 400VAC - Max
  • Coil Voltage: 24VDC
  • Coil Resistance: 777 Ohms
  • Coil Current: 30.8 mA
  • Operating Temperature: -40°C ~ 70°C
  • Type: General Purpose
  • Mounting Type: Socketable
  • Features: Mechanical Indicator and Test Button
