Same model may have multiple batches, images only for reference.

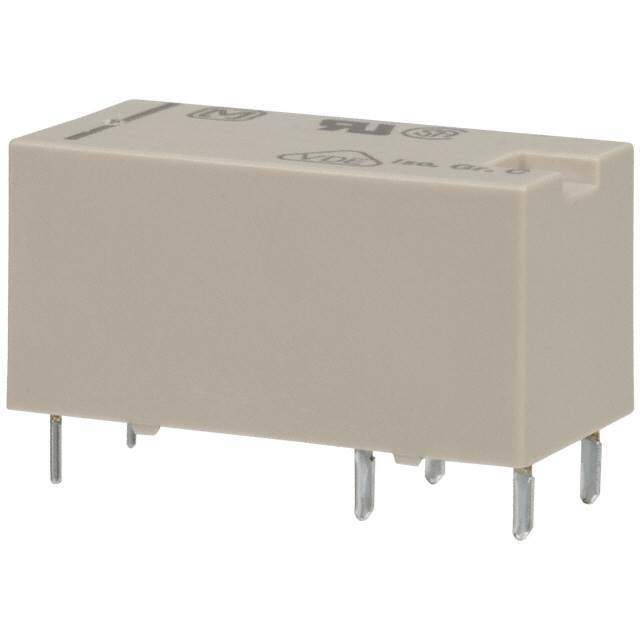

DE2A-12V Real Image
Same model may have multiple batches, images only for reference.

DE2A-12V

Part No DE2A-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 12V / General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series DE
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number DE2A
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1339695-DE2A-12V
Ultra Librarian 3D Model Ultra Librarian DE2A-12V CAD Model

Description

The DE series power relay from Panasonic Electric Works is a DPST-NO (2 Form A) relay with a coil voltage of 12VDC and a coil current of 16.7mA.

  • Contact Form: DPST-NO (2 Form A)
  • Coil Voltage: 12VDC
  • Coil Current: 16.7mA
  • Contact Rating: 8A
  • Switching Voltage: 250VAC/30VDC
  • Mounting Style: Through-Hole
  • Operating Temperature: -40°C to 70°C
  • Coil Resistance: 720 ohms
  • Operate Time: 10ms
  • Release Time: 5ms
  • Packaging: Tube
  • Standard Package: 20 pieces
