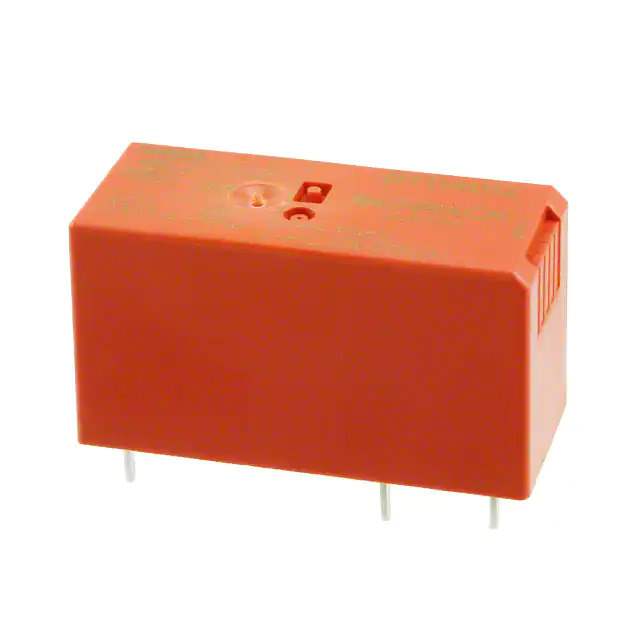

RT114012 Real Image
Same model may have multiple batches, images only for reference.

RT114012

Part No RT114012
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 12A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RT1, SCHRACK
Package Box
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12 A
Switching Voltage 400VAC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 8 ms
Release Time 6 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number RT114
Standard Package 500 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 661369-RT114012
Ultra Librarian 3D Model Ultra Librarian RT114012 CAD Model

Description

The RT1 power relay is a versatile and reliable component for various applications. The RT1 relay features a single pole, double throw (SPDT) contact form.

  • Contact Form: SPDT
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Coil Current: 33.3mA
  • Contact Rating: 12A
  • Switching Voltage: 400VAC
  • Protection: sealed for flux protection
  • Operating Temperature: -40°C to 85°C
  • Coil Type: non-latching
  • Release Time: 6ms
  • Mounting: through-hole
  • Standard Package: 500 pieces
  • Common Use: general-purpose applications
