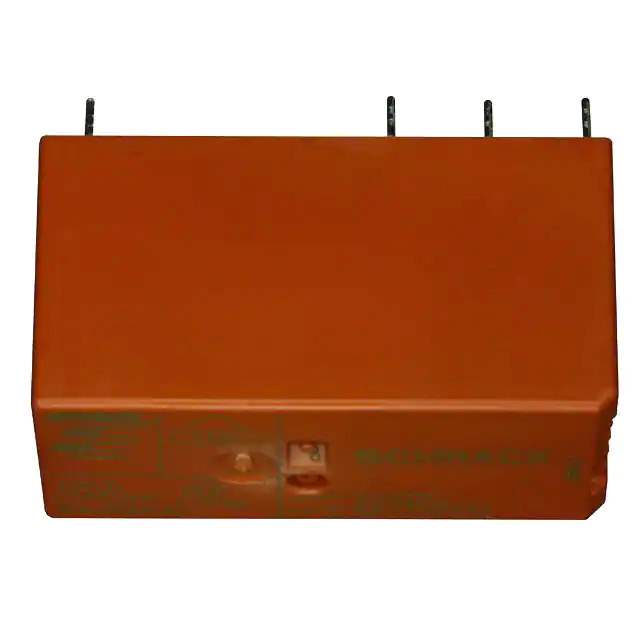

RT424024 Real Image RT424024 real image13027 RT424024 Real Image
Same model may have multiple batches, images only for reference.
RT424024 Real Image RT424024 real image13027 RT424024 Real Image
RT424024 Real Image RT424024 real image13027 RT424024 Real Image
Same model may have multiple batches, images only for reference.

RT424024

Part No RT424024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RT2, SCHRACK
Package Box
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 8 ms
Release Time 6 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Base Product Number RT4
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 661418-RT424024
Ultra Librarian 3D Model Ultra Librarian RT424024 CAD Model

Description

The 661418-RT424024 is another power relay from TE Connectivity.

  • Series: RT2 and SCHRACK
  • Package: Box
  • Quantity per Package: 20 pieces
  • Application: Power relay
  • Current Rating: 8 Amps
  • Contact Form: DPDT (2 Form C)
  • Contact Material: Silver nickel (AgNi)
  • Coil Resistance: 1.44 kOhms
  • Coil Current: 16.7 mA
  • Operate Time: 8 ms
  • Release Time: 6 ms
  • Coil Voltage: 24VDC
  • Switching Voltage: 400VAC
  • Seal Rating: Sealed - flux protection
  • Mounting Type: Through hole
  • Operating Temperature Range: -40°C to 85°C
  • MSL Level: 1 (Unlimited)
  • Coil Insulation: Class F
  • Must Operate Voltage: 16.8 VDC
  • Must Release Voltage: 2.4 VDC
  • REACH Status: REACH unaffected
  • HTSUS Code: 8536.41.0050
  • Base Product Number: RT4
  • Status: Active
