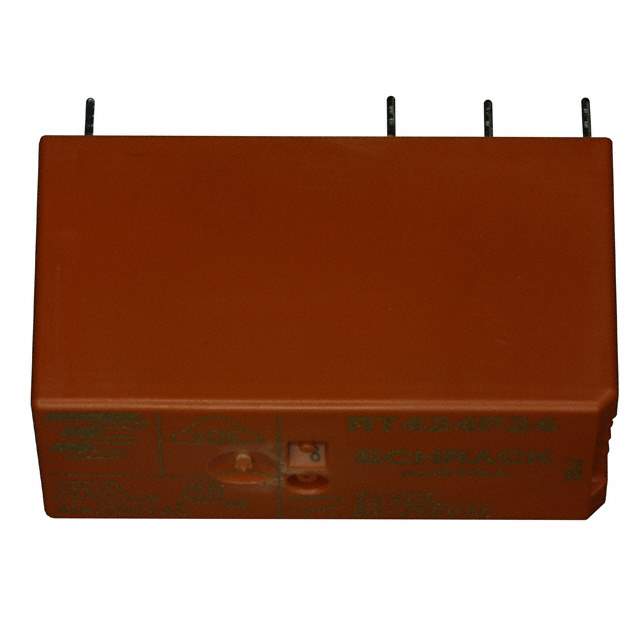

RT424A12 Real Image RT424A12 Real Image
RT424A12 Real Image RT424A12 Real Image
Same model may have multiple batches, images only for reference.

RT424A12

Part No RT424A12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 12V
Datasheet
RT424A12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Latching, Single Coil
Coil Current 33.3mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 8.4 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 360 Ohms
Temperature Range - Operating -10°C to 85°C
Win Source Part Number 210909-RT424A12
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RT424A12 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays RT424A12 is a DPDT (2 Form C) general purpose relay with a coil voltage of 12VDC.

  • Switching Voltage: 400VAC - Max
  • Contact Rating (Current): 8A
  • Coil Resistance: 360 Ohms
  • Coil Current: 33.3mA
  • RoHS Compliant: Yes
  • Temperature Range: -10°C to 85°C
  • Package Type: tube/rail
  • Mounting Style: through hole
  • Category: Relays
  • Manufacturer: TE Connectivity Potter & Brumfield Relays
