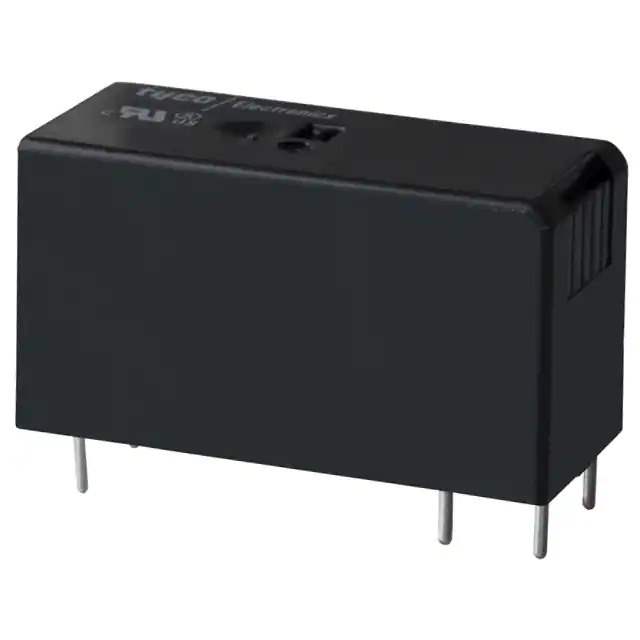

RTE24048 Real Image
Same model may have multiple batches, images only for reference.

RTE24048

Part No RTE24048
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 48V / General Purpose Relay DPDT (2 Form C) 48VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RT2, SCHRACK
Package Box
Product Status Active
Mounting Type Through Hole
Coil Voltage 48VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 8.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 33.6 VDC
Must Release Voltage 4.8 VDC
Operate Time 8 ms
Release Time 6 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 5.52 kOhms
Base Product Number RTE24
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 661734-RTE24048
Ultra Librarian 3D Model Ultra Librarian RTE24048 CAD Model

Description

The RTE24048 power relay from TE Connectivity is a high-quality component designed for power switching applications.

  • Series: RT2
  • Contact Form: DPDT (2 Form C)
  • Contact Material: Silver Nickel (AgNi)
  • Coil Voltage: 48VDC
  • Coil Resistance: 5.52 kOhms
  • Coil Current: 8.7 mA
  • Contact Rating: 8 A, 400VAC
  • Response Time: 8 ms
  • Release Time: 6 ms
  • Seal: Fully Sealed
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 85°C
