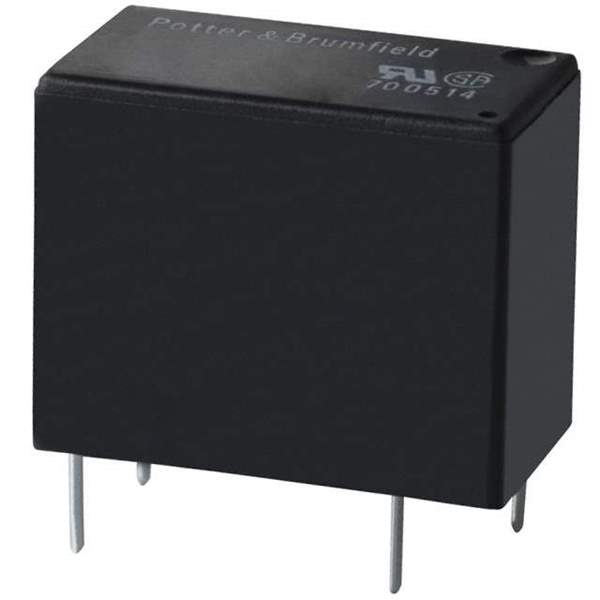

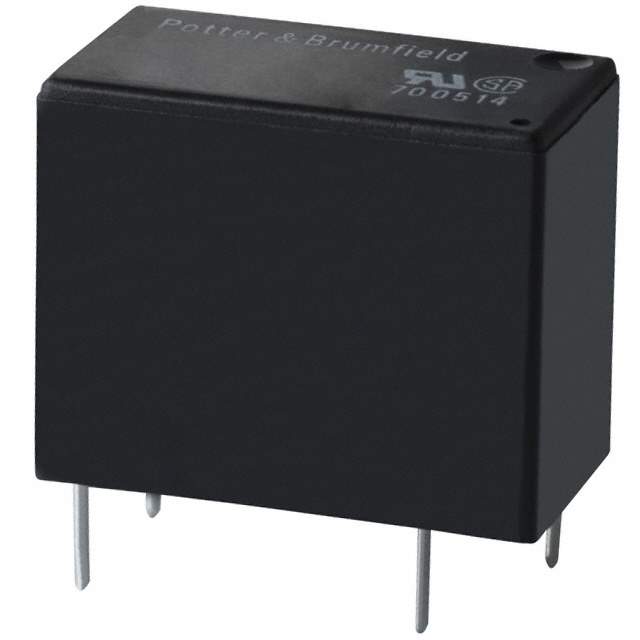

T77V1D10-24 Real Image
Same model may have multiple batches, images only for reference.

T77V1D10-24

Part No T77V1D10-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 24V
Datasheet
T77V1D10-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 18.75mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 4ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 450 mW
Coil Resistance 1.28 kOhms
Temperature Range - Operating -30°C to 85°C
Win Source Part Number 047693-T77V1D10-24
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T77V1D10-24 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 047693-T77V1D10-24 is a general purpose non-latching relay that features insulation class F and sealed flux protection.

  • Contact Form: SPST-NO (1 Form A)
  • Mounting Style: Through-Hole
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.28 kOhms
  • Coil Current: 18.75mA
  • Switching Current: Up to 10A
  • Switching Voltage: 250VAC and 30VDC - Max
  • Turn-On Voltage: 18VDC
  • Turn-Off Voltage: 1.2VDC
  • Operate Time: 10ms
  • Release Time: 4ms
  • Coil Power: 450mW
  • Temperature Range: -30°C to 85°C
  • Supply and Demand Status: Limited.
