Same model may have multiple batches, images only for reference.

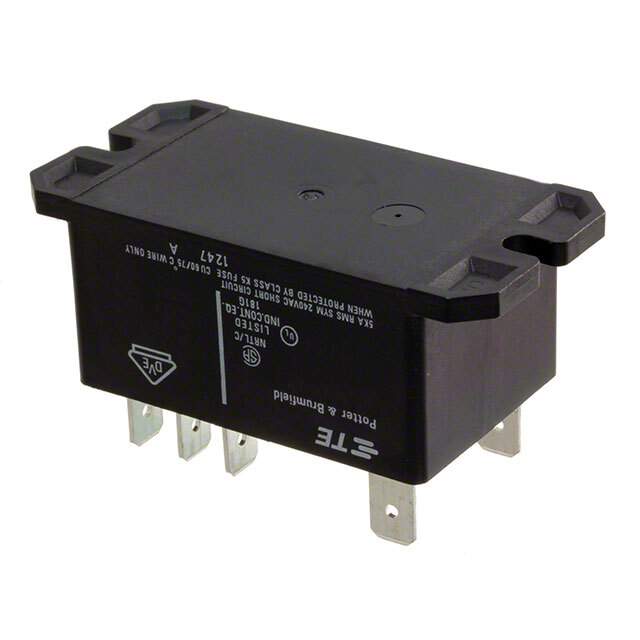

T92P11A22-208 Real Image
Same model may have multiple batches, images only for reference.

T92P11A22-208

Part No T92P11A22-208
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series T92
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 208VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 30 A
Switching Voltage 277VAC - Nom
Coil Current 19.2 mA
Coil Type Non Latching
Termination Style Quick Connect - 0.250" (6.3mm)
Coil Insulation Class F
Must Operate Voltage 166.4 VAC
Must Release Voltage 20.8 VAC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -55°C ~ 65°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Base Product Number T92P1
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0075
Win Source Part Number 1315144-T92P11A22-208
Ultra Librarian 3D Model Ultra Librarian T92P11A22-208 CAD Model

Description

The T92P11A22-208 is a power relay that is part of the T92 series. T92P11A22-208 from TE Connectivity Potter & Brumfield Relays

  • Series: T92
  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 30A
  • Coil Voltage: 208VAC
  • Coil Current: 19.2mA
  • Operating Temperature: -55°C to 65°C
  • ECCN: EAR99
  • Applications: Power Supplies, Lighting Controls, and Motor Controls
