Same model may have multiple batches, images only for reference.

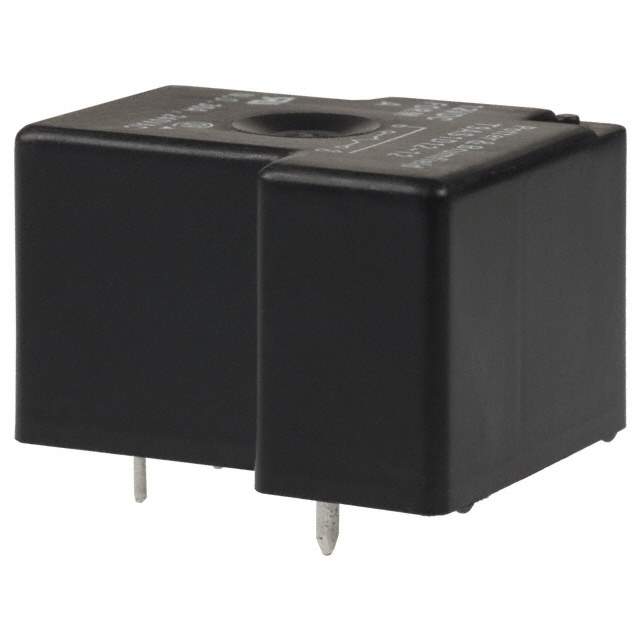

T9AS5D12-5 Real Image
Same model may have multiple batches, images only for reference.

T9AS5D12-5

Part No T9AS5D12-5
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 20A 5V / General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series T9A
Package Bulk
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 20 A
Switching Voltage 277VAC - Max
Coil Current 200 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 25 Ohms
Base Product Number T9AS5
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0050
Other Names T9AS5D125,3-1393210-9
Standard Package 50
Win Source Part Number 969443-T9AS5D12-5
Ultra Librarian 3D Model Ultra Librarian T9AS5D12-5 CAD Model

Description

The T9AS5D12-5 relay from TE Connectivity Potter & Brumfield Relays is a general-purpose relay with a single pole double throw (SPDT) contact form.

  • Switching Voltage: Up to 277VAC
  • Current: Up to 20A
  • Relay Type: Non-latching
  • Coil Voltage: 5VDC
  • Coil Resistance: 25 Ohms
  • Operate Time: 15ms
  • Release Time: 15ms
  • Seal: Sealed fully
  • Operating Temperature Range: -55°C to 85°C
  • Suitable for: Power relays over 2 amps
  • Packaging: Bulk
  • Standard Package: 50
