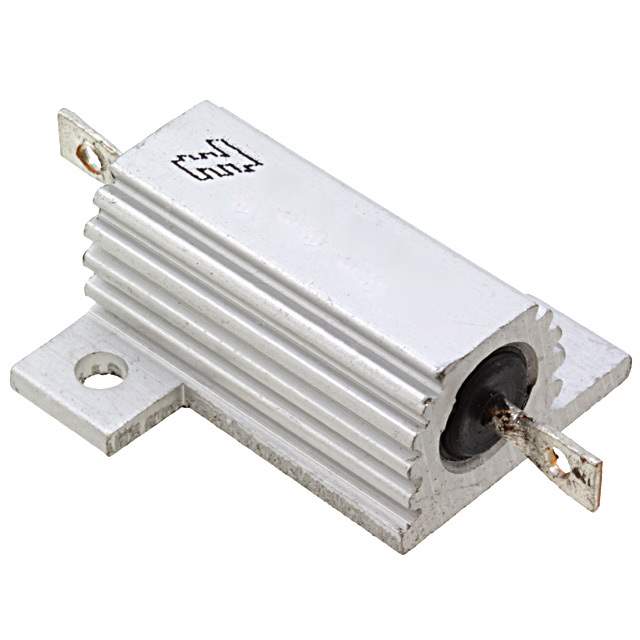

THS255R1J Real Image
Same model may have multiple batches, images only for reference.

THS255R1J

Part No THS255R1J
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 5.1 OHM 5% 25W / 5.1 Ohms ±5% 25W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series THS, CGS
Package Tray
Resistance 5.1 Ohms
Tolerance ±5%
Power (Watts) 25W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 1.142" L x 1.102" W (29.00mm x 28.00mm)
Height - Seated (Max) 0.591" (15.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number THS25
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.29.0000
Other Names 2-1879075-1-ND,2-1879075-1,A132014,THS255R1J-ND
Standard Package 100
Win Source Part Number 1101239-THS255R1J
Ultra Librarian 3D Model Ultra Librarian THS255R1J CAD Model

Description

The TE Connectivity Passive Product 1101239-THS255R1J is a chassis mount resistor that falls under the category of resistors.

  • Power: 25W
  • Resistance: 5.1 Ohms
  • Temperature Coefficient: ±50ppm/°C
  • Tolerance: ±5%
