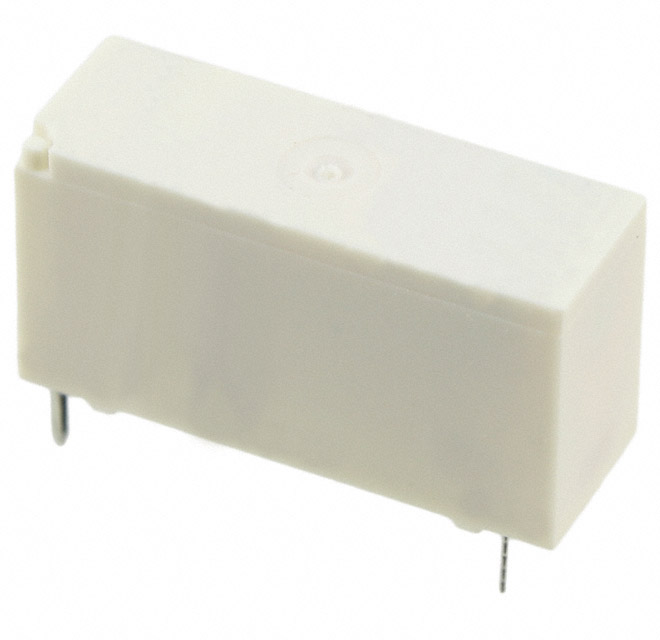

V23061-B1002-A401 TE Connectivity
Same model may have multiple batches, images only for reference.

V23061-B1002-A401

Part No V23061-B1002-A401
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE SPDT 8A 5V
Datasheet
V23061-B1002-A401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 42.4mA
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 3.4 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class A, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 212 mW
Coil Resistance 118 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 043545-V23061-B1002-A401
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V23061-B1002-A401 CAD Model

Description

The V23061-B1002-A401 is a non-latching, general purpose relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Coil Voltage: 5VDC
  • Contact Rating: 8A
  • Contact Form: SPDT (1 Form C)
  • Switching Voltage: 400VAC
  • Coil Resistance: 118 Ohms
  • Coil Current: 42.4mA
  • Category: Relays
  • Popularity: Medium
