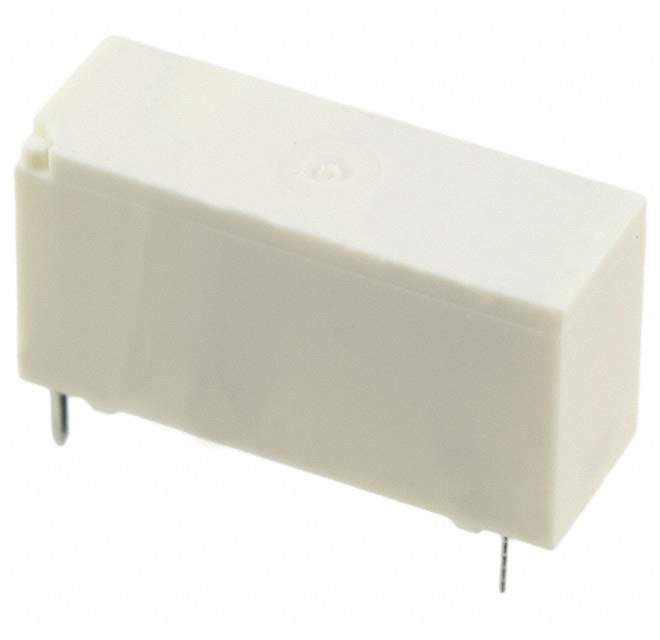

V23061B1010A501 Real Image
Same model may have multiple batches, images only for reference.

V23061B1010A501

Part No V23061B1010A501
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 8A 60V / General Purpose Relay SPDT (1 Form C) 60VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series MSR, SCHRACK
Package Tube
Mounting Type Through Hole
Coil Voltage 60VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 4 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class A
Must Operate Voltage 40.8 VDC
Must Release Voltage 6 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 15.27 kOhms
Base Product Number V23061
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names 4-1393223-3
Standard Package 20
Win Source Part Number 1137033-V23061B1010A501
Ultra Librarian 3D Model Ultra Librarian V23061B1010A501 CAD Model

Description

The V23061B1010A501 relay from TE Connectivity Potter & Brumfield Relays is a general-purpose, non-latching SPDT relay with a contact rating of 8A and a switching voltage of 400VAC.

  • Relay Type: General-purpose, non-latching SPDT
  • Contact Rating: 8A
  • Switching Voltage: 400VAC
  • Seal Rating: Fully sealed
  • Mounting Type: Through-hole
  • Coil Voltage: 60VDC
  • Coil Resistance: 15.27 kOhms
  • Coil Current: 4mA
  • Operate Time: 10ms
  • Release Time: 5ms
  • Contact Material: Silver nickel (AgNi)
  • Termination Style: PC pin
  • Operating Temperature Range: -40°C to 85°C
  • Package: Tube
  • Alternative Part Cross-Reference: 4-1393223-3
