Same model may have multiple batches, images only for reference.

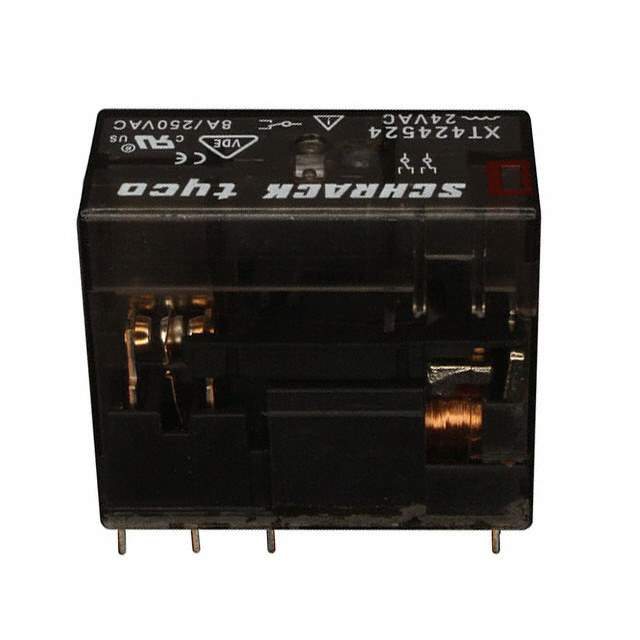

XT424524 Real Image
Same model may have multiple batches, images only for reference.

XT424524

Part No XT424524
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Estimated Pruduction Lead Time 20 Weeks
Features General Purpose Relay DPDT (2 Form C) 24VAC Coil Socketable
Manufacturer TE Connectivity
Series XT, SCHRACK
Package Tube
Operating Temperature Range -40°C ~ 70°C
Mounting Socketable
Family Name XT42
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0020
Other Part Number 1887201-3, PB1198
Quantity per package 10
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904131-XT424524
Ultra Librarian 3D Model Ultra Librarian XT424524 CAD Model

Description

The XT42 relay is a general-purpose relay that has a DPDT (2 Form C) configuration and a 24VAC coil.

  • Configuration: DPDT (2 Form C)
  • Coil Voltage: 24VAC
  • Mounting Type: Socketable
  • Series: XT, SCHRACK
  • Manufacturer: TE Connectivity
  • Package: Tube
  • ECCN: EAR99
  • Popularity: High
