The AMC1100DWV is a high-precision isolation amplifier designed by Texas Instruments to provide outstanding electrical isolation for a variety of industrial and commercial applications. This device is specifically engineered to enhance system performance by accurately measuring and monitoring shunt voltage across current-sensing resistors in motor drives, inverters, and power supplies.

Key Features

• High Isolation Voltage: The AMC1100DWV offers a reinforced isolation of 4kV PEAK, making it suitable for high-voltage applications where safety and reliability are critical.
• Low Offset Error: It boasts a low offset error and drift over temperature, ensuring precision and stability in measurements.
• High CMTI: With a high common-mode transient immunity (CMTI) of 25 kV/µs, the device is capable of rejecting high-voltage transients, which is vital for industrial environments.
• Wide Supply Range: The device operates from a single 5V power supply, making it compatible with a broad range of applications.

Applications

The AMC1100DWV is tailored for use in various applications where accurate electrical measurements and isolation are required. It is ideal for:

• Current sensing in motor control systems
• Power monitoring in inverters and power supplies
• Industrial process controls
• Green energy applications, such as solar power inverters and wind turbines

Package and Quality

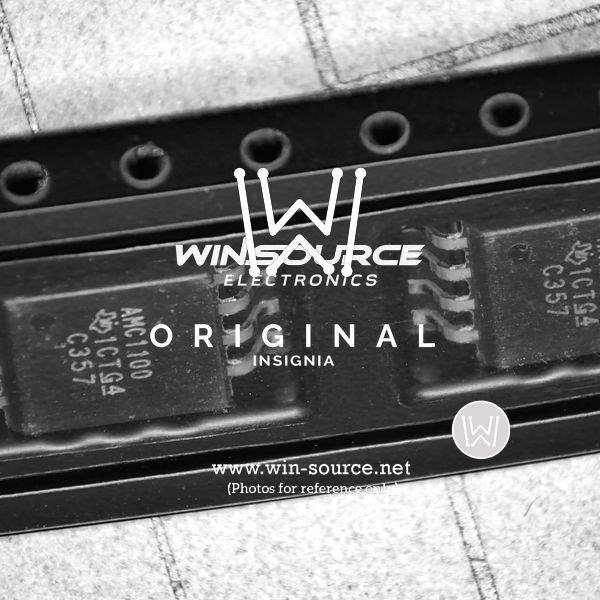

This device comes in a compact, surface-mount SOIC (DWV) package, ensuring easy integration into PCB designs. It is also characterized for operation from -40°C to +125°C, which allows for use in extreme temperature conditions. The AMC1100DWV is part of Texas Instruments' commitment to high-quality and reliable components, making it a trusted choice for engineers and designers around the world.
