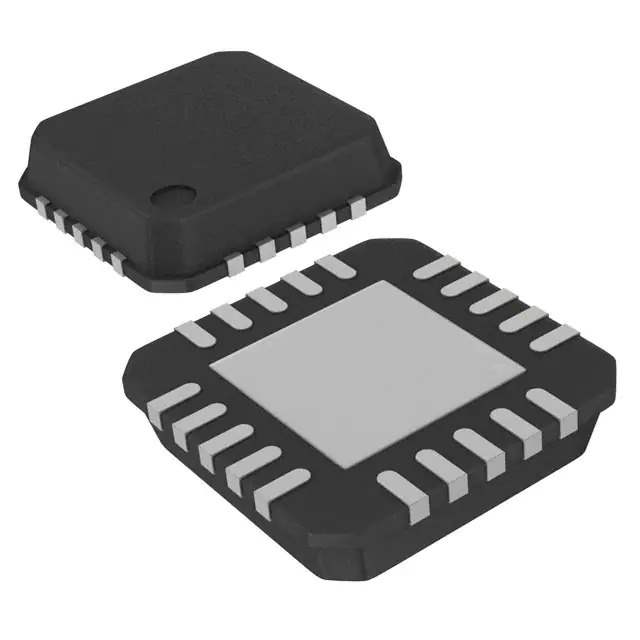

The CC1101RTK is a low-power sub-1 GHz RF transceiver designed by Texas Instruments (TI). It is a highly integrated solution, providing reliable wireless communication for a wide range of applications within the Industrial, Scientific, and Medical (ISM) bands. This transceiver is perfect for systems where very low power consumption is required, such as wireless sensor networks, home automation, and smart metering.

Key Features

• Frequency Range: The CC1101RTK operates in the 300-348 MHz, 387-464 MHz, and 779-928 MHz frequency bands, making it suitable for a variety of geographic regions and regulatory standards.
• Modulation Formats: It supports multiple modulation formats including 2-FSK, 4-FSK, GFSK, MSK, OOK, and ASK, providing flexibility to meet different application requirements.
• High Sensitivity: With a sensitivity of up to -116 dBm, the transceiver ensures robust data communication even in harsh RF environments.
• Low Current Consumption: The device boasts a low current consumption of 15.6 mA in transmit mode at +12 dBm and 16.2 mA in receive mode, which is ideal for battery-operated systems.
• Programmable Data Rate: The data rate is programmable from 0.6 to 600 kbps, allowing designers to optimize the transceiver for power consumption, range, and data throughput.
• Flexible Packet Handling: An integrated packet handler supports both fixed and variable packet lengths, including packet handling features such as CRC, addressing, and automatic retransmission on packet error.

Applications

The versatility of the CC1101RTK transceiver makes it suitable for a diverse array of applications. It is commonly used in home and building automation, wireless alarms and security systems, industrial monitoring and control, and smart metering solutions. Additionally, its low-power capabilities make it an excellent choice for battery-powered applications and energy-harvesting systems.

Design Support

Texas Instruments provides comprehensive design support for the CC1101RTK, including development tools, reference designs, and technical documentation to facilitate rapid design-in and product development. Engineers and designers can take advantage of TI's extensive online resources and community forums for guidance and support throughout their design process.
