Overview of Texas Instruments CD74HC4053PW

The Texas Instruments CD74HC4053PW is a high-quality, versatile analog multiplexer/demultiplexer that is part of the HC/HCT logic family. This integrated circuit is designed to handle both digital and analog signals, making it an essential component for a wide range of electronic applications. The CD74HC4053PW is well-suited for communication systems, data acquisition systems, and signal processing tasks where precise signal routing is required.

Key Features

• Triple 2-Channel Multiplexing: The CD74HC4053PW features three separate 2-channel multiplexers, which can be used independently or combined for various signal routing configurations.
• Wide Operating Voltage Range: It operates over a broad voltage range from 2V to 6V, providing compatibility with a variety of logic levels and allowing for use in both 3.3V and 5V systems.
• Low ON Resistance: The device boasts a low ON resistance, typically around 70 ohms at 4.5V VCC, ensuring minimal signal attenuation and higher signal integrity.
• High Noise Immunity: Characteristic of the HC/HCT family, the CD74HC4053PW offers high noise immunity, which is crucial for maintaining signal clarity in electrically noisy environments.
• Bidirectional Operation: Its bidirectional switches allow for versatile signal routing, capable of handling both digital and analog signals efficiently.
• Break-Before-Make Switching: The multiplexer's break-before-make switching mechanism ensures that a new channel is connected only after the previous one has been disconnected, preventing signal cross-talk.

Package and Quality

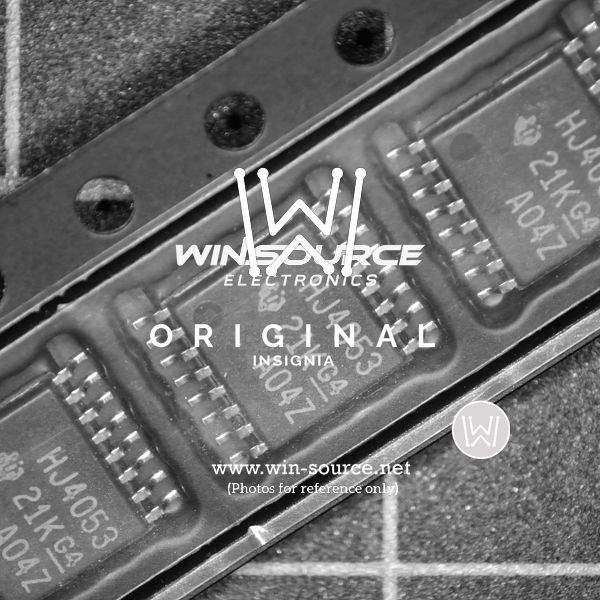

The CD74HC4053PW is available in a TSSOP (Thin Shrink Small Outline Package) with 16 pins, offering a compact footprint for space-constrained applications. Texas Instruments' commitment to quality ensures that this component meets stringent industry standards for performance and reliability.

Applications

With its versatile functionality, the CD74HC4053PW is ideal for a variety of applications, including:

• Analog signal routing
• Data acquisition systems
• Communication systems
• Audio and video switching
• Function generators
• Instrumentation

Overall, the CD74HC4053PW from Texas Instruments is a reliable and flexible solution for designers who require precise control over signal paths in their electronic designs.
