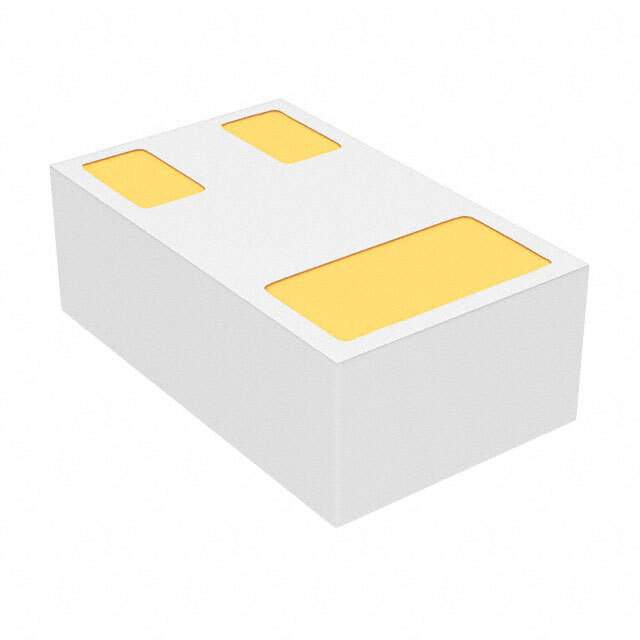

The CSD17484F4T is a high-performance, N-Channel NexFET™ power MOSFET designed and manufactured by Texas Instruments. This state-of-the-art power MOSFET is optimized for fast-switching applications and is well-suited for a variety of power management tasks. With its ultra-low on-resistance and a compact form factor, the CSD17484F4T is an ideal choice for space-constrained and power-sensitive applications.

Key Features

• Ultra-Low On-Resistance: The CSD17484F4T boasts an exceptionally low on-resistance, typically just 8.7 mΩ at V<sub>GS = 10 V, which translates to reduced conduction losses and improved overall efficiency in power circuits.
• Advanced Power Packaging: Housed in a compact 2mm x 2mm SON package, the device minimizes PCB space requirements, making it a perfect fit for portable electronics, where space is at a premium.
• High Continuous Drain Current: With a continuous drain current rating of 30 A, this MOSFET can handle high current loads, making it suitable for demanding applications such as power supplies and motor control circuits.
• Fast Switching Speed: The device is designed for fast switching, with reduced gate charge and capacitance, which minimizes switching losses and makes it ideal for high-frequency power converters.
• Robust Thermal Performance: The CSD17484F4T is designed to operate efficiently even at elevated temperatures, ensuring reliable performance in thermally challenging environments.

Applications

• DC/DC Converters
• Power Management for Portable Devices
• Motor Control Circuits
• Load Switches
• Point of Load (POL) Modules

Overall, the CSD17484F4T from Texas Instruments represents a blend of efficiency, power density, and high-performance characteristics that make it an excellent choice for designers looking to optimize their power management solutions. Its robust design and advanced features ensure that it can meet the stringent requirements of modern electronic devices and systems.
