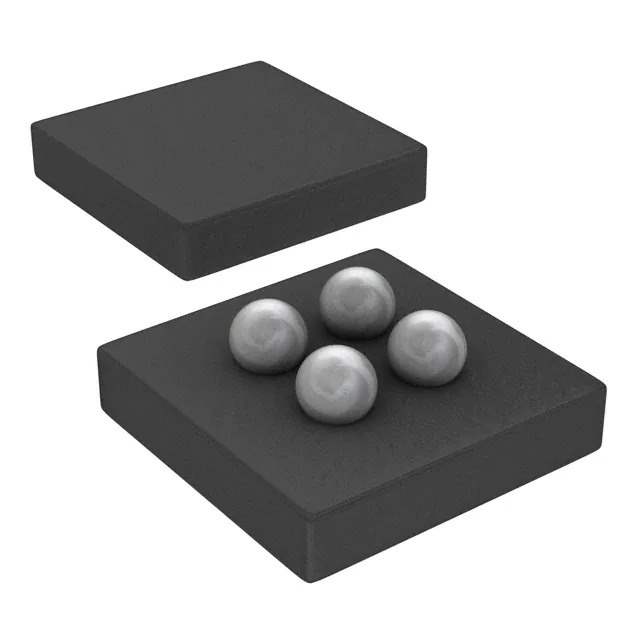

The Texas Instruments CSD25213W10 is a state-of-the-art N-Channel NexFET™ power MOSFET designed to deliver high-performance and efficiency in a compact package. This MOSFET is part of Texas Instruments' extensive portfolio of power management solutions, aimed at providing advanced technology for a wide range of applications.

Key Features

• Ultra-Low On-Resistance: The CSD25213W10 boasts an ultra-low on-resistance (R_DS(on)) of just 8.9 mΩ at V_GS = 4.5 V, ensuring minimal power loss and improved efficiency in power conversion applications.
• Advanced Power Packaging: Encased in a compact SON 2x2 package, this MOSFET is designed for space-constrained applications, while providing excellent thermal performance and ease of use in circuit design.
• High Continuous Drain Current: With its ability to support a high continuous drain current (I_D) of 12 A, the CSD25213W10 is an ideal choice for high-power-density applications.
• Low Threshold Voltage: The device features a low threshold voltage, making it suitable for low-voltage operations and enhancing its versatility across various circuit designs.

Applications

The CSD25213W10 is engineered for a broad range of applications, including but not limited to:

• DC/DC Converters
• Power Supply Load Switches
• Battery Management Systems
• Motor Control Circuits
• Point of Load (POL) Modules

Reliability and Quality

Texas Instruments is renowned for its commitment to quality and reliability. The CSD25213W10 is no exception, undergoing rigorous testing to ensure it meets the highest standards. This MOSFET is RoHS compliant and is designed to provide long-term performance even in the most demanding conditions.

Support and Resources

For designers and engineers, Texas Instruments provides extensive support and resources, including datasheets, design tools, simulation models, and technical documentation to facilitate the integration of the CSD25213W10 into various applications.

With its combination of efficiency, power density, and high performance, the Texas Instruments CSD25213W10 is an excellent choice for designers looking to optimize their power management systems.
