The CSD25404Q3T is a state-of-the-art N-channel NexFET™ power MOSFET from Texas Instruments, designed to deliver high performance in a compact footprint. This advanced MOSFET technology has been engineered to meet the rigorous demands of modern power supply applications, offering designers an optimal balance of low on-resistance, high-speed switching, and power density.

Key Features

• Low On-Resistance (R<sub>DS(on)): The device boasts an ultra-low on-resistance, which translates to reduced conduction losses and improved overall efficiency in power conversion systems.
• High-Speed Switching: With its fast switching capabilities, the CSD25404Q3T is well-suited for high-frequency applications, enabling more efficient power management with less switching loss.

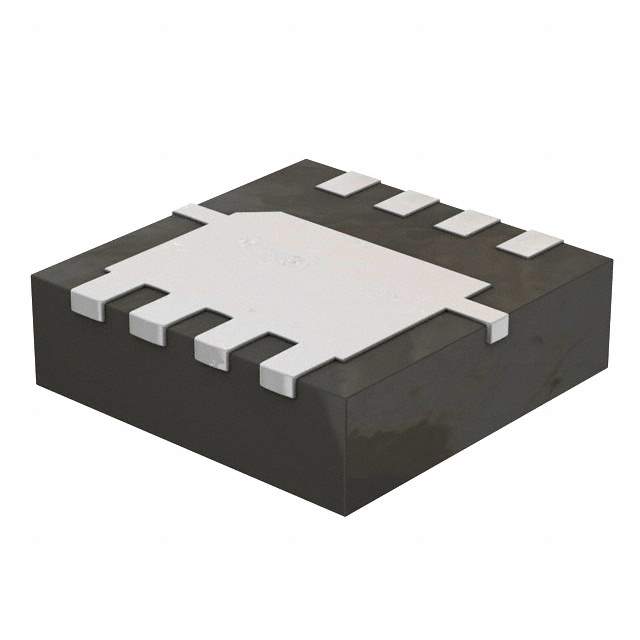

• Compact Footprint: Housed in a small 3.3 mm x 3.3 mm SON package, this MOSFET is ideal for space-constrained applications where board real estate is at a premium.
• Robust Thermal Performance: The device's excellent thermal characteristics ensure reliable operation even under high power and temperature conditions.

Applications

The versatility of the CSD25404Q3T allows it to be used across a wide range of applications, including but not limited to:

• DC/DC conversion systems
• Motor control circuits
• Power management solutions
• Computing and server power supplies
• Telecommunications equipment

Technical Specifications

Parameter Value V<sub>DS (Drain-to-Source Voltage) 40V I<sub>D (Continuous Drain Current) 100A Q<sub>g (Total Gate Charge) 21nC R<sub>θJC (Junction-to-Case Thermal Resistance) 0.8°C/W

The CSD25404Q3T from Texas Instruments represents a blend of performance, efficiency, and reliability, making it an excellent choice for designers aiming to create cutting-edge power systems.
